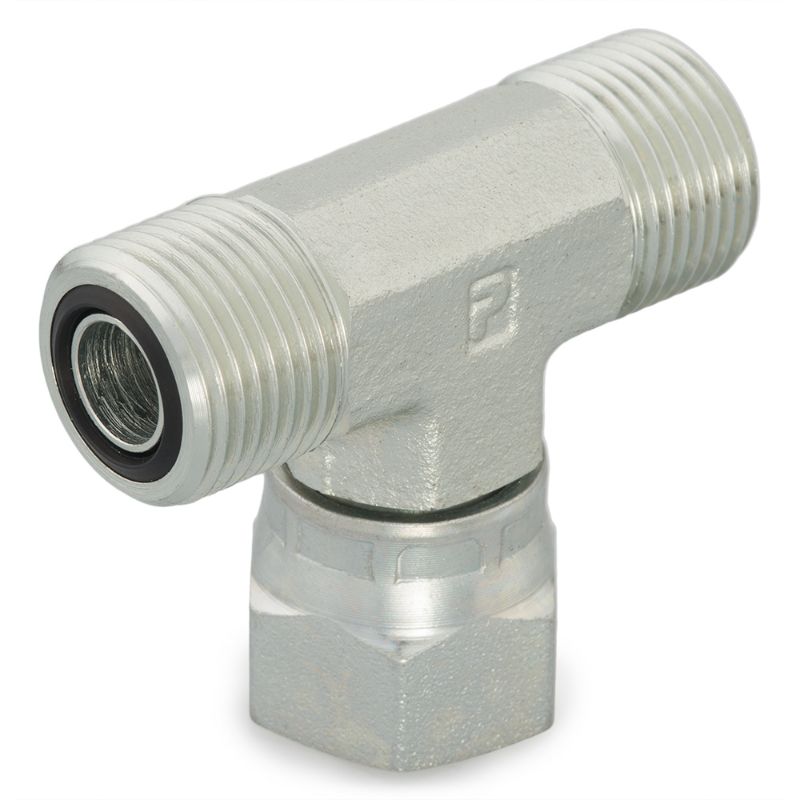

Parker 10 S6LO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	58 In Stock

Brand Parker

Part No. 10 S6LO-S

$55.60

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Maximum Dynamic Pressure	6000 psi	Shape	Tee
Body Material	Steel	Connection Type	O-ring Face Seal
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Connection 3 Tube Outside Diameter	14, 15, 16 mm	Connection 4 Tube Outside Diameter	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Type	Male O-Ring Face Seal
Connection 2 Type	Male O-Ring Face Seal	Connection 3 Type	Female O-Ring Face Seal Swivel
Connection 4 Type	na	Dimensional Weight	0.12336555755395684 lb
Specifications Met	SAE J1453

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
