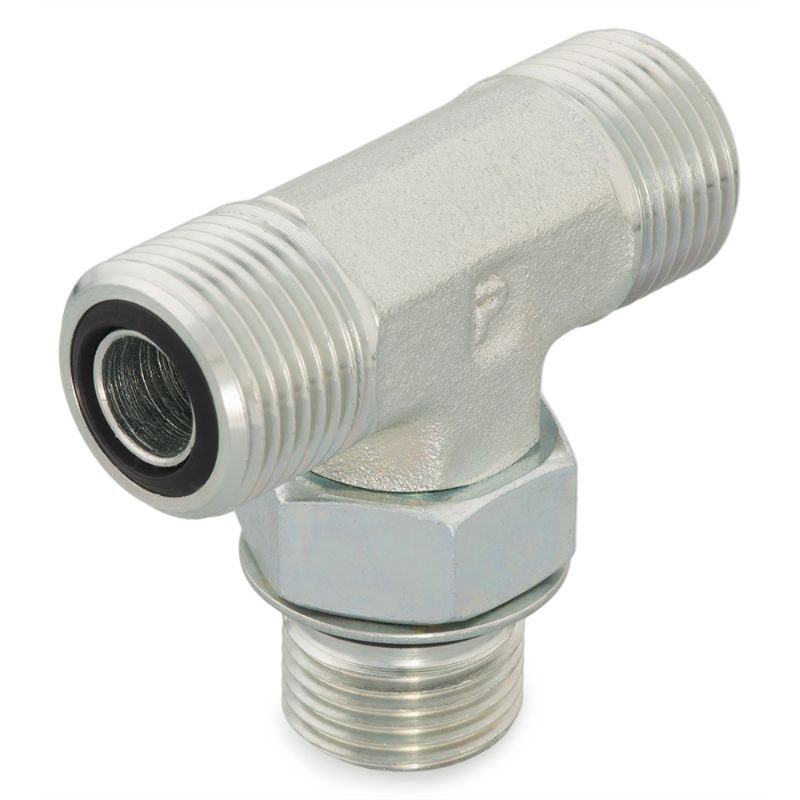

Parker 10 S5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 10 S5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 10 S5OLO-S
Price: 48.86 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

6 In Stock

North Chesterfield, VA	2
West Knoxville, TN	2
East Knoxville, TN	2

Partner Available:

25 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 S5OLO-S

$48.86/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Type	Male SAE Straight Thread
Connection 3 Thread Size	na	Specifications Met	SAE J1453
Maximum Dynamic Pressure	6000 psi	Connection 1 Type	Male O-Ring Face Seal
Dimensional Weight	0.1370728417266187 lb	Connection Type	O-ring Face Seal
O-Ring Material	90 Durometer Nitrile	Division	Tube Fittings Division
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 2 Type	Male O-Ring Face Seal	Connection 4 Type	na
Connection 1 Tube Outside Diameter	5/8 inch	Shape	Tee
Connection 2 Tube Outside Diameter	5/8 inch	Connection 2 Thread Size	na
Body Material	Steel

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
