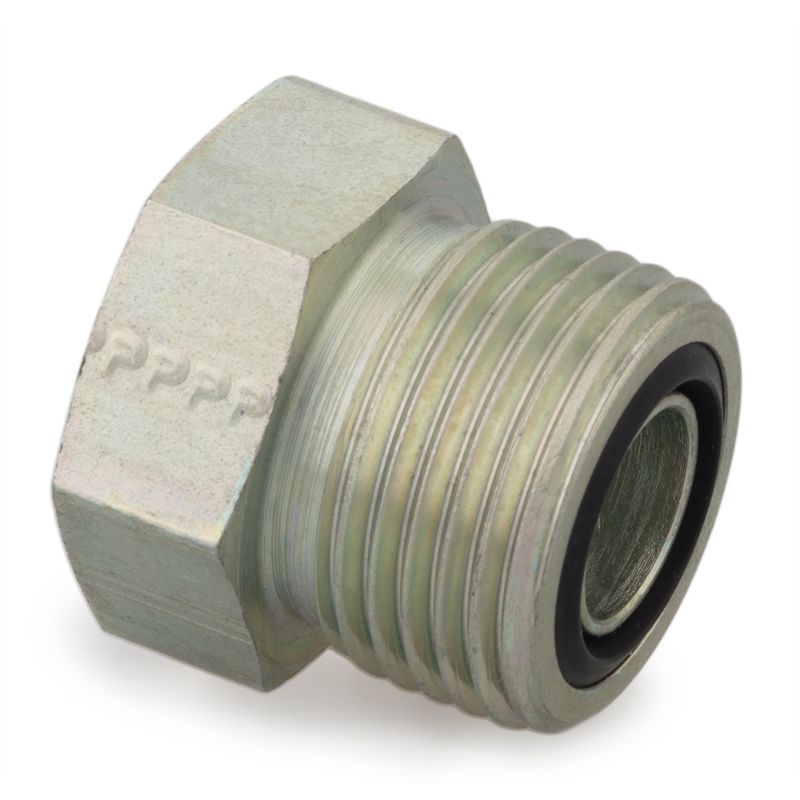

Parker 10 PNLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 10 PNLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 10 PNLO-S
Price: 8.52 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

148 In Stock

Summerville, SC	33
Richmond, VA	24
Fayetteville, NC	16
Sumter, SC	15
Johnson City, TN	12 (Pickup only)
Grovetown, GA	12
Knoxville, TN	10
Knoxville, TN	6
Mooresville, NC	6
Ashland, VA	4 (Pickup only)
Norfolk, VA	4
Jacksonville, FL	4
Richmond, VA	2 (Pickup only)

Partner Available:

791 In Stock

Brand Parker

Part No. 10 PNLO-S

$8.52/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Maximum Dynamic Pressure	6000 psi	Shape	Plug
Body Material	Steel	Connection Type	na
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Type	Male O-Ring Face Seal
Connection 2 Type	na	Connection 3 Type	na
Connection 4 Type	na	Dimensional Weight	0.11047661870503597 lb
Specifications Met	SAE J1453

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
