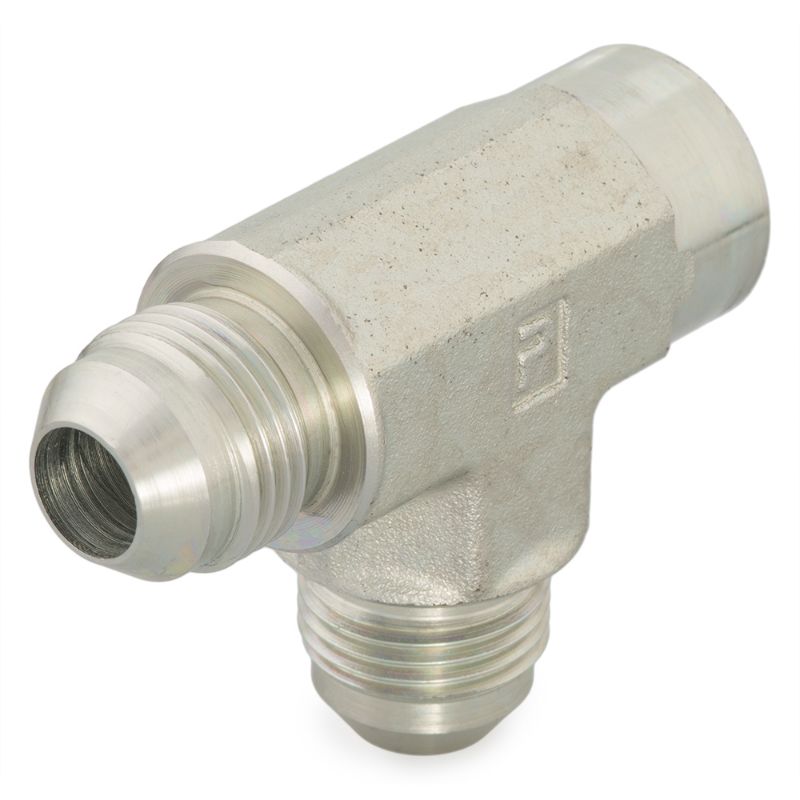

Parker 10 MTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10 MTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 MTX-S
Price: 36.64 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

1 Limited Stock

North Chesterfield, VA

Partner Available:

88 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 MTX-S

$36.64/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	14, 15, 16 mm	O-Ring Material	na
Connection 1 Tube Outside Diameter	5/8 inch	Connection Type	37° Flare
Division	Tube Fittings Division	Connection 2 Size	Female NPT/NPTF
Body Material	Steel	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Male 37° Flare	Connection 4 Size	na
Specifications Met	SAE J514	Connection 3 Size	Male 37° Flare
Maximum Dynamic Pressure	3000 psi	Connection 2 Tube Outside Diameter	na
Connection 2 Thread Size	na	Shape	Tee

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
