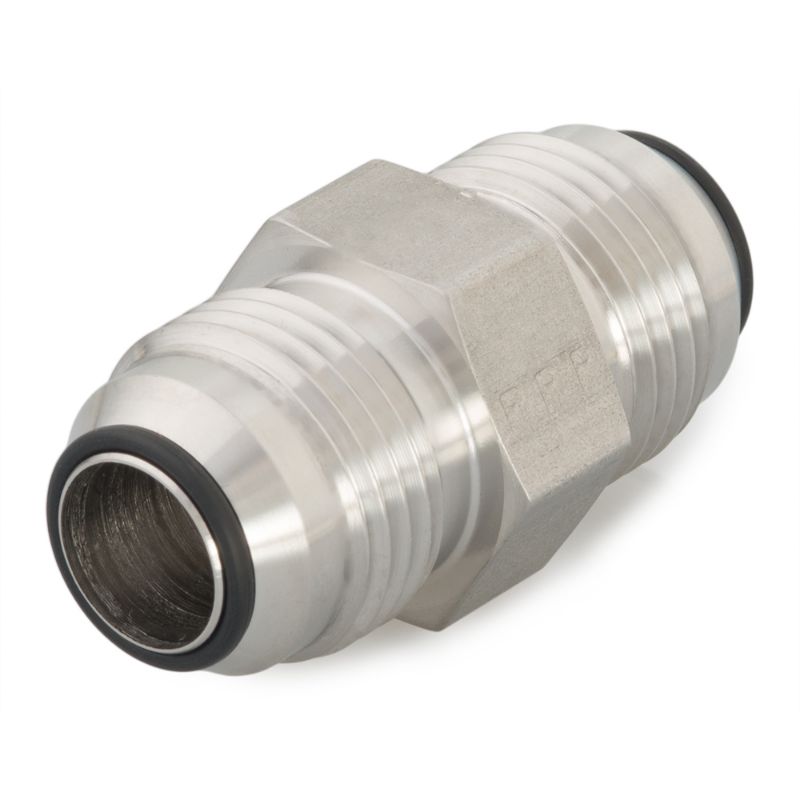

Parker 10 HTXO-SS - Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10 HTXO-SS

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	6000 psi
Body Material	Stainless Steel	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J514	Connection 3 Tube Outside Diameter	na
Connection 3 Size	na	Connection Type	Soft Seal Stainless Steel 37° Flare
Shape	Straight	Connection 2 Thread Size (inch)	na
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Tube O.D. (inch)	5/8
Connection 1 Style	Male 37° Flare with O-ring Seal on Nose	Connection 2 Style	Male 37° Flare with O-ring Seal on Nose
