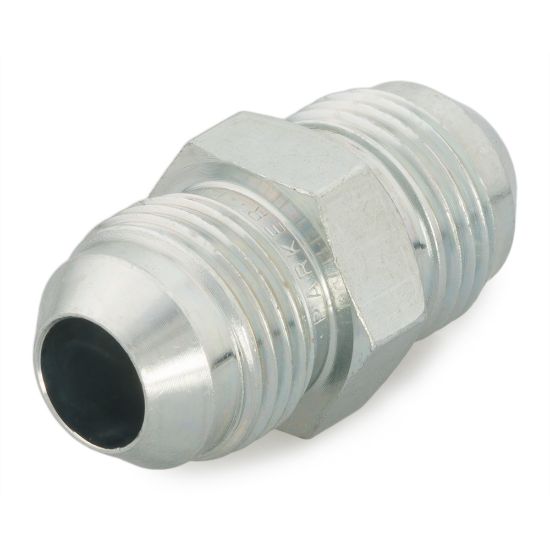

Parker 10 HTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10 HTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 HTX-S
Price: 7.23 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

212 In Stock

North Chesterfield, VA	114
Norfolk, VA	32
Johnson City, TN	18 (Pickup only)
Mooresville, NC	10
Grovetown, GA	7
Jacksonville, FL	6
Fayetteville, NC	6
Summerville, SC	6
Sumter, SC	5
Richmond, VA	3 (Pickup only)
West Knoxville, TN	2
East Knoxville, TN	2
Ashland, VA	1 (Pickup only)

Partner Available:

1096 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 HTX-S

$7.23/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	5/8 inch	O-Ring Material	na
Connection Type	37° Flare	Division	Tube Fittings Division
Shape	Straight	Connection 2 Thread Size	na
Connection 1 Size	Male 37° Flare	Body Material	Steel
Maximum Dynamic Pressure	5000 psi	Connection 4 Size	na
Specifications Met	SAE J514	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Connection 3 Size	na	Connection 2 Size	Male 37° Flare
Dimensional Weight	0.07742805755395683 lb	Connection 3 Tube Outside Diameter	na
Connection 3 Thread Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
