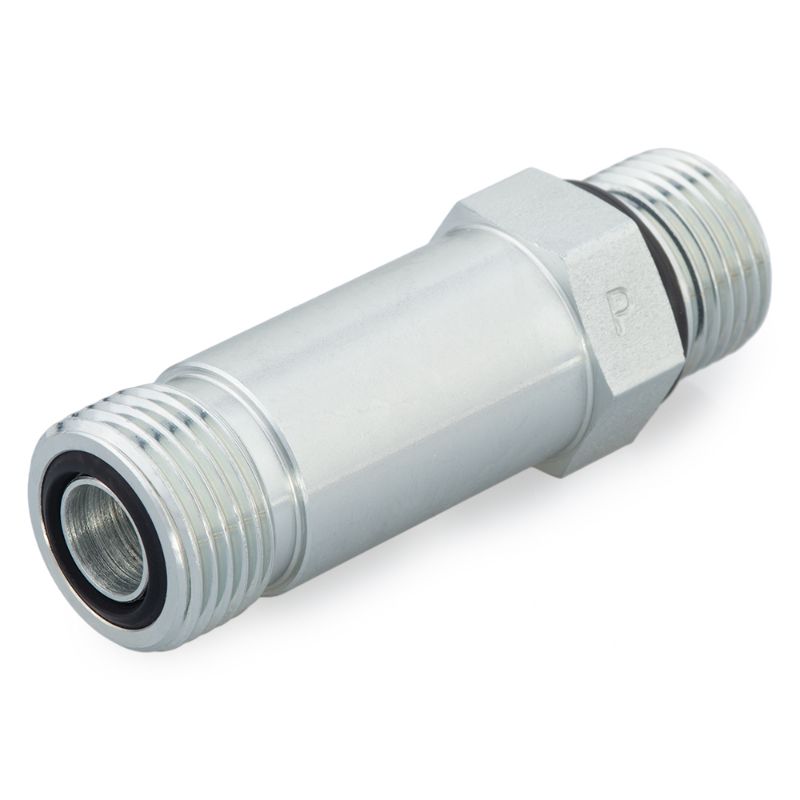

Picture of Parker 10 FF5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 10 FF5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
AFP Availability:
4 In Stock
North Chesterfield, VA4
Partner Available:84 In Stock
Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
Brand Parker
Part No. 10 FF5OLO-S
$37.44/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 3 Tube Outside Diameterna
Connection 3 Thread SizenaConnection 3 Typena
Connection 1 Tube Outside Diameter5/8 inchConnection 4 Typena
Connection 4 Tube Outside DiameternaDivisionTube Fittings Division
Connection TypeTube to SAE Straight ThreadDimensional Weight0.12464028776978417 lb
O-Ring Material90 Durometer NitrileShapeStraight
Body MaterialSteelConnection 2 TypeMale SAE-ORB
Maximum Dynamic Pressure6000 psiConnection 1 TypeMale O-Ring Face Seal - Long
Connection 2 Thread Size7/8-14 inchConnection 2 Tube Outside Diameterna
Specifications MetSAE J1453
