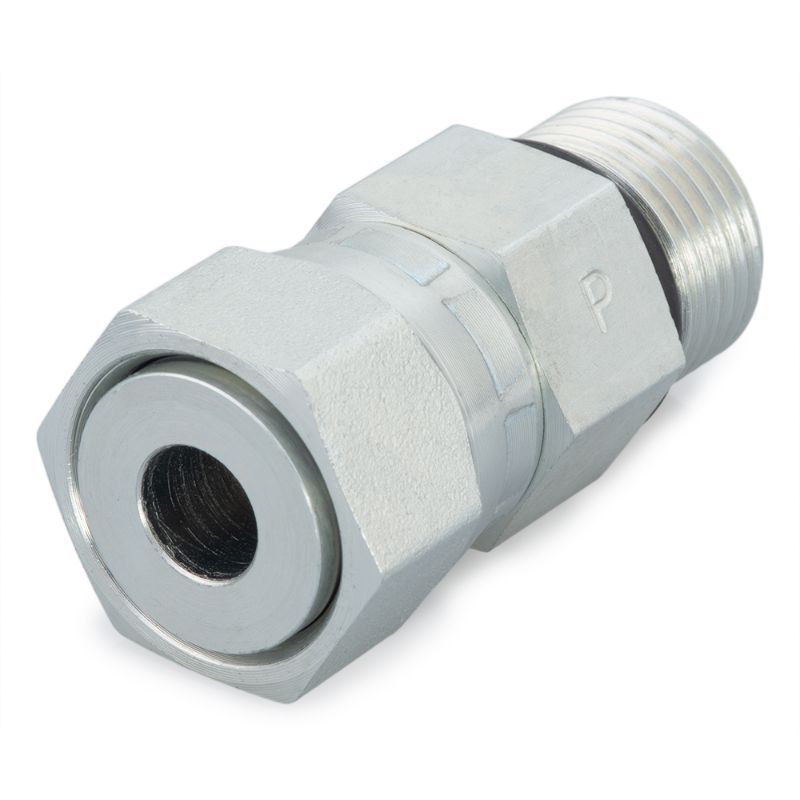

Parker 10 F65OL-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 10 F65OL-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 10 F65OL-S
Price: 35.26 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

13 In Stock

Grovetown, GA	6
Sumter, SC	5
North Chesterfield, VA	2

Partner Available:

41 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 F65OL-S

$35.26/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection 2 Type	Male SAE-ORB	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Specifications Met	SAE J1453
Connection 2 Tube Outside Diameter	na	Connection 1 Type	Female O-Ring Face Seal Swivel
Shape	Straight	Connection 2 Thread Size	7/8-14 inch
Connection 3 Type	na	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Maximum Dynamic Pressure	6000 psi
O-Ring Material	90 Durometer Nitrile	Connection Type	O-ring Face Seal
Connection 4 Type	na	Division	Tube Fittings Division
Dimensional Weight	0.12464028776978417 lb

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
