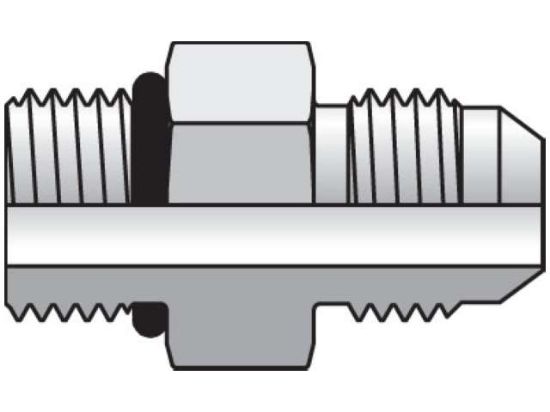

Parker 10 F5OX-S V0894 - Triple-Lok 37° Straight F5OX

Triple-Lok - Straight Thread Connector 37° Flare / SAE-ORB

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10 F5OX-S V0894

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
End 1	5/8 Inch	Pkg Qty	200
UOM	EA	Material	Steel
O-Ring/Seal Material	Fluorocarbon	Pkg Qty/UOM	200 EA
End 2	7/8-14 UN/UNF-2A	Inch/Metric	Inch
Trade Name	Triple-Lok	Configuration Sub-Type	Straight Thread Connector 37° Flare / SAE-ORB
Series	37°	End 2 Type	UN/UNF-2A
End 1 Type	Inch	Configuration Type	Straight
End 2	7/8-14 UN/UNF-2A	Parker Division	Tube Fitting
O-Ring/Seal Material	Fluorocarbon	Material	Steel
Parker Group	Fluid Connector	Tube Fitting/Adapter Type	37°, Triple-Lok
End 1	5/8 Inch

Product resources

Triple-Lok Flare Tube Fittings (PDF)
