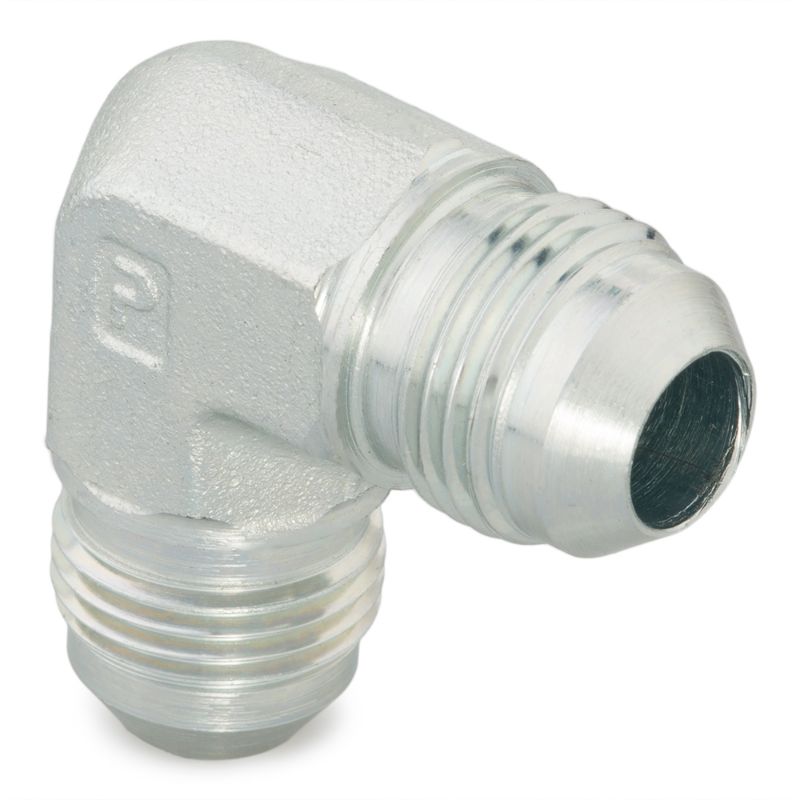

Parker 10 ETX-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. 10 ETX-SS

$90.23/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	Male 37° Flare
Connection 4 Tube Outside Diameter	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 2 Thread Size	na	Connection 3 Size	na
Shape	90° Elbow	Connection 2 Tube Outside Diameter	5/8 inch
Body Material	Stainless Steel	Connection 3 Thread Size	na
Maximum Dynamic Pressure	5000 psi	Connection 4 Size	na
Specifications Met	SAE J514	Connection Type	Tube to Tube
Division	Tube Fittings Division	Connection 2 Size	Male 37° Flare
Dimensional Weight	0.07913669064748201 lb	O-Ring Material	na
Connection 3 Tube Outside Diameter	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
