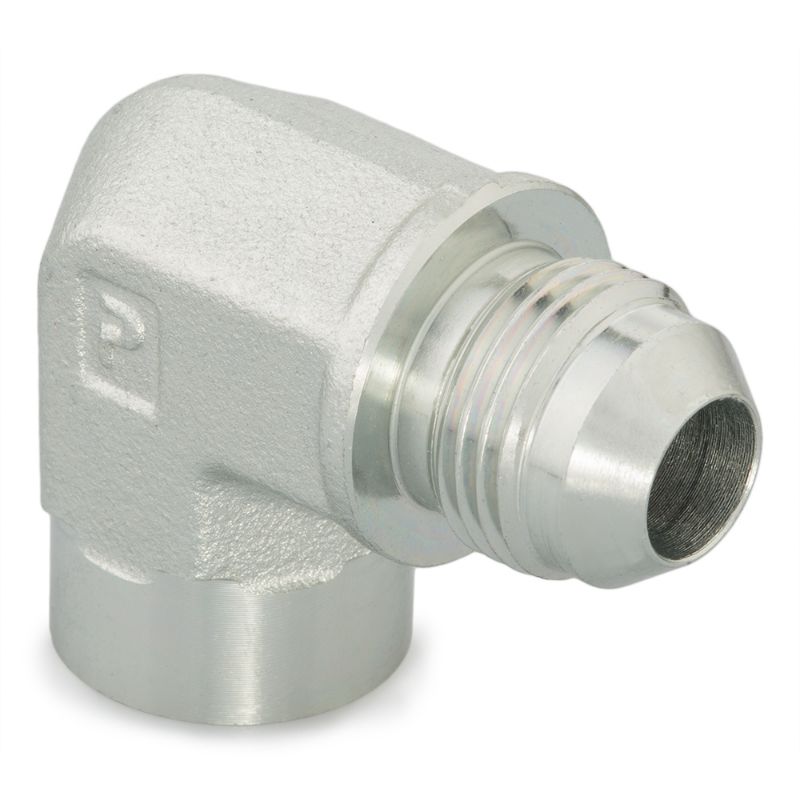

Picture of Parker 10 DTX-B - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 10 DTX-B - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 10 DTX-B
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body MaterialBrassDivisionTube Fittings Division
Connection 4 SizenaMaximum Dynamic Pressure2000 psi
O-Ring MaterialnaSpecifications MetSAE J514
Shape90° ElbowConnection 3 Thread Sizena
Connection 1 Tube Outside Diameter14, 15, 16 mmConnection 2 Tube Outside Diameterna
Connection 3 Tube Outside DiameternaConnection 4 Tube Outside Diameterna
Connection 1 SizeMale 37° FlareConnection 3 Sizena
Connection TypeTube to NPTConnection 2 SizeFemale NPT/NPTF
Connection 2 Thread Size1/2-14 inch
