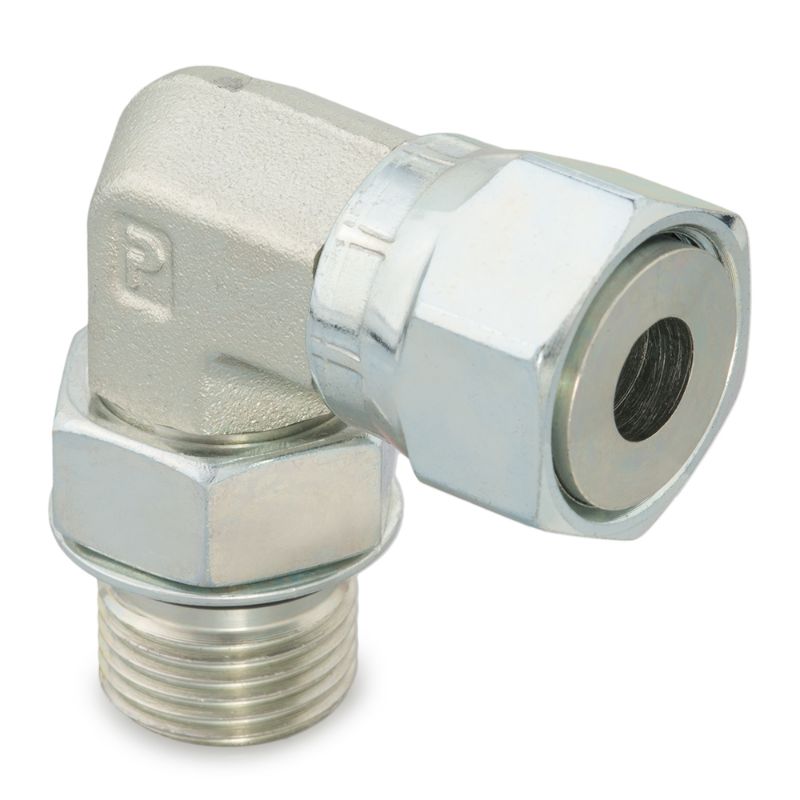

Parker 10 AOEL6-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 10 AOEL6-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 10 AOEL6-S
Price: 37.26 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

5 In Stock

Grovetown, GA

Partner Available:

7 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 AOEL6-S

$37.26/each

Qty:

Products specifications

Attribute name	Attribute value
Connection 1 Tube Outside Diameter	5/8 inch	Connection 4 Type	na
Connection Type	Tube to SAE Straight Thread	Division	Tube Fittings Division
Dimensional Weight	0.12336555755395684 lb	O-Ring Material	90 Durometer Nitrile
Body Material	Steel	Connection 4 Tube Outside Diameter	na
Connection 2 Type	Male SAE-ORB	Specifications Met	SAE J1453
Maximum Dynamic Pressure	6000 psi	Connection 1 Type	Female O-Ring Face Seal Swivel
Connection 2 Thread Size	7/8-14 inch	Shape	90° Elbow
Connection 2 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	na
Connection 3 Thread Size	na	Connection 3 Type	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
