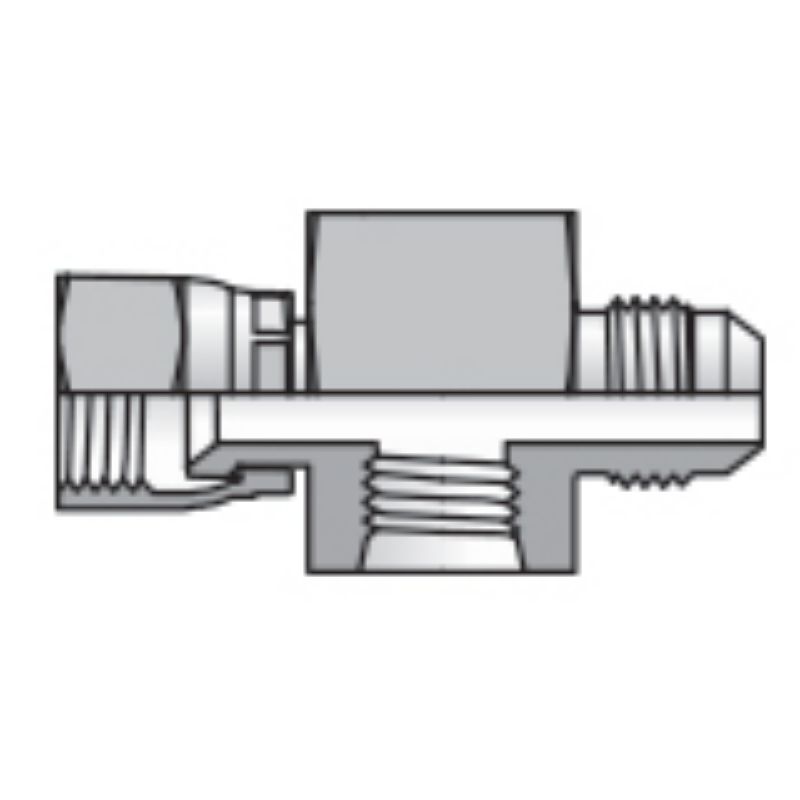

Parker 10-4 XHX6G5TP-S - In-Line Diagnostic Fittings and Adapters

Name: Parker 10-4 XHX6G5TP-S - In-Line Diagnostic Fittings and Adapters
SKU: 10-4 XHX6G5TP-S
Price: 70.20 USD
Availability: InStock

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

AFP Availability:

18 In Stock

Grovetown, GA	4
North Chesterfield, VA	2
Ashland, VA	2 (Pickup only)
Norfolk, VA	2
West Knoxville, TN	2
Johnson City, TN	2 (Pickup only)
East Knoxville, TN	2
Fayetteville, NC	1
Summerville, SC	1

Partner Available:

200 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10-4 XHX6G5TP-S

$70.20/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Static Pressure	6500 psi
Maximum Dynamic Pressure	5000 psi	Dimensional Weight	0.19784172661870503 lb
Division	Tube Fittings Division	Connection Type	In-Line Gauge Port Tee
Body Material	Steel	Body Material	Steel
O-Ring Material	na	Connection 2 Thread Size (mm)	na
Connection 2 Thread Size (inch)	na	Connection 1 Tube O.D. (inch)	5/8
Connection 2 Tube O.D. (inch)	5/8	Connection 1 Tube O.D. (mm)	na
Connection 2 Style	Female 37° Flare Swivel	Connection 1 Style	Male 37° Flare
Connection 3 Style	Female SAE-ORB Port	Connection 3 Thread Size (inch)	7/16-20
Connection 2 Tube O.D. (mm)	na	Connection 3 Thread Size (mm)	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
