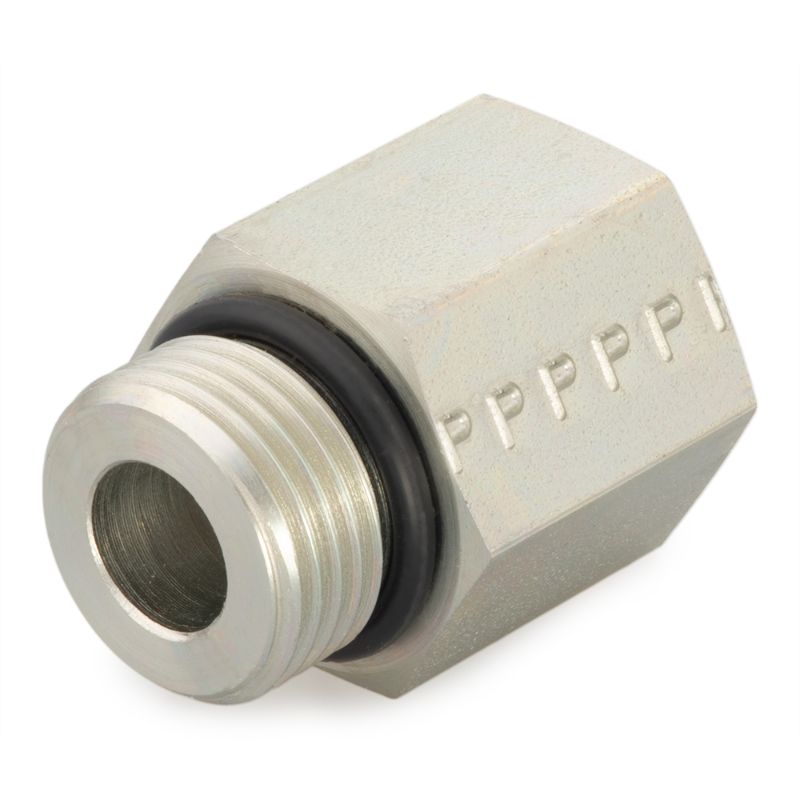

Parker 10-1/2F5OHG4S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	16 In Stock

Brand Parker

Part No. 10-1/2F5OHG4S

$48.38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Connection 4 Size	na	Connection 4 Thread Size	na
Maximum Dynamic Pressure	5000 psi	Fitting Type	Pipe Adapter
Body Material	Steel	Shape	Straight
Length (inch)	na	Body Material	Steel
Connection 3 Style	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 2 Thread Size (inch)	1/2-14
Connection 3 Thread Size (inch)	na	O-Ring Material	90 Durometer Nitrile
Connection 1 Style	Male SAE-ORB	Connection 1 Thread Size (inch)	7/8-14
Connection 2 Style	Female BSPP	Connection Style	SAE-ORB to BSPP

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
