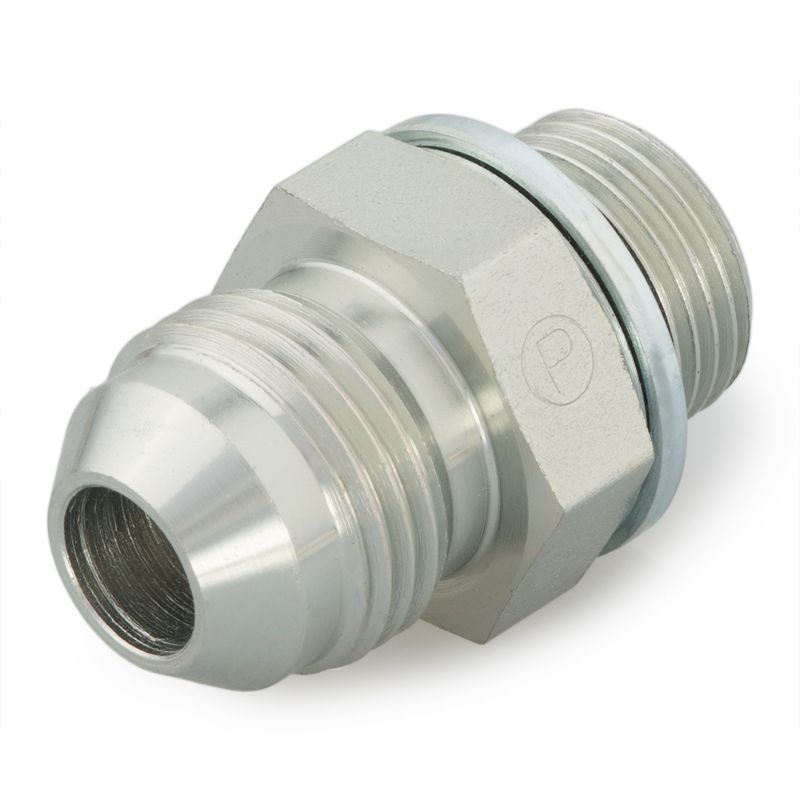

Parker 10-12F4OMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 10-12F4OMXS

$28.77/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection 1 Size	Male 37° Flare	Connection 4 Tube Outside Diameter	na
Specifications Met	SAE J514	Maximum Dynamic Pressure	4000 psi
Connection 4 Size	na	Shape	Straight
Connection 2 Tube Outside Diameter	na	Connection 3 Size	na
Connection 2 Thread Size	3/4-14 inch	Connection 2 Size	Male BSPP O-Ring Retaining Ring
Connection 3 Tube Outside Diameter	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection Type	Tube to BSPP-ORR with Metric Hex
O-Ring Material	90 Durometer Nitrile	Division	Tube Fittings Division
