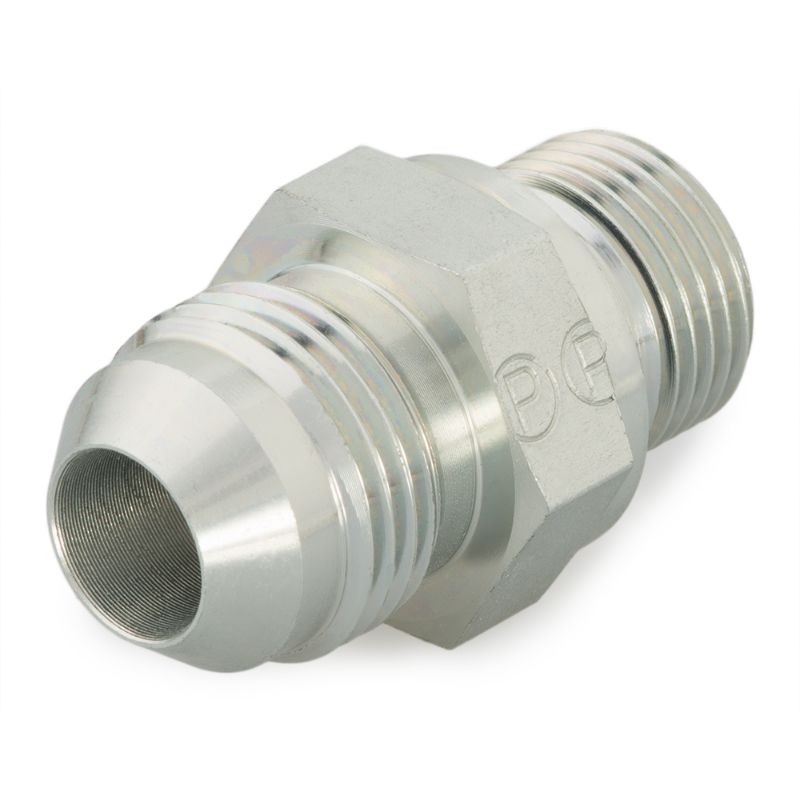

Parker 10-12F42EDMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10-12F42EDMXS

$17.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Size	na
Connection 2 Tube Outside Diameter	na	Specifications Met	SAE J514
Connection 2 Thread Size	na	Shape	Straight
Connection 3 Tube Outside Diameter	na	Connection 3 Thread Size	na
Connection 4 Size	na	Maximum Dynamic Pressure	5000 psi
Connection Type	37° Flare	Division	Tube Fittings Division
O-Ring Material	90 Durometer Nitrile	Dimensional Weight	0.07194244604316546 lb
Connection 2 Size	Male BSPP EOlastic Seal	Body Material	Steel
Connection 1 Size	Male 37° Flare	Connection 1 Tube Outside Diameter	5/8 inch
Connection 4 Tube Outside Diameter	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
