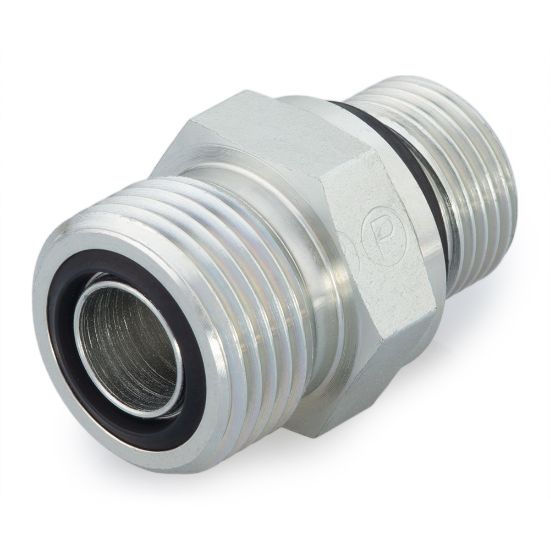

Parker 10-12F42EDMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 10-12F42EDMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 10-12F42EDMLOS
Price: 14.48 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

8 In Stock

Johnson City, TN	3 (Pickup only)
West Knoxville, TN	2
East Knoxville, TN	2
Norfolk, VA	1

Partner Available:

3 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10-12F42EDMLOS

$14.48/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Type	na
Maximum Dynamic Pressure	6000 psi	Connection 1 Type	Male O-Ring Face Seal
Specifications Met	SAE J1453	Dimensional Weight	0.07194244604316546 lb
Connection 3 Thread Size	na	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
O-Ring Material	90 Durometer Nitrile	Connection Type	O-ring Face Seal
Division	Tube Fittings Division	Connection 4 Type	na
Connection 2 Tube Outside Diameter	na	Connection 2 Thread Size	na
Shape	Straight	Body Material	Steel
Connection 2 Type	Male BSPP ED Seal

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
