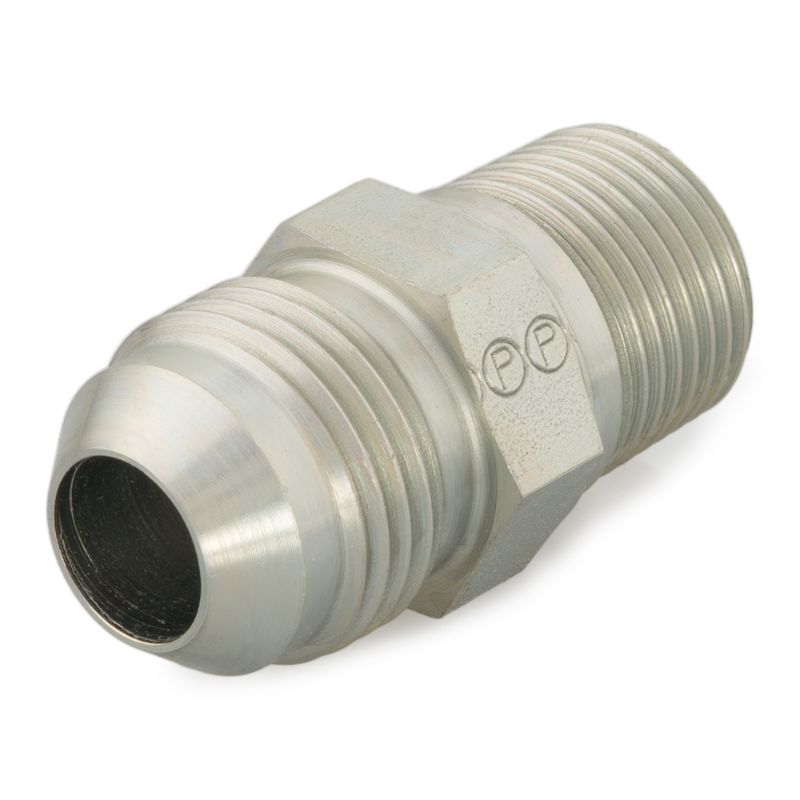

Parker 10-12F3MXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10-12F3MXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10-12F3MXS
Price: 45.45 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

1 Limited Stock

Summerville, SC

Partner Available:

103 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10-12F3MXS

$45.45/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	Male 37° Flare
Body Material	Steel	Connection 1 Tube Outside Diameter	5/8 inch
Connection 4 Tube Outside Diameter	na	Connection 3 Size	na
Connection 2 Tube Outside Diameter	na	Specifications Met	SAE J514
Connection 2 Thread Size	3/4-14 inch	Shape	Straight
Connection 3 Thread Size	na	Connection 4 Size	na
Maximum Dynamic Pressure	2300 psi	Division	Tube Fittings Division
Connection Type	Tube to BSPT with Metric Hex	O-Ring Material	na
Connection 2 Size	Male BSPT	Connection 3 Tube Outside Diameter	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
