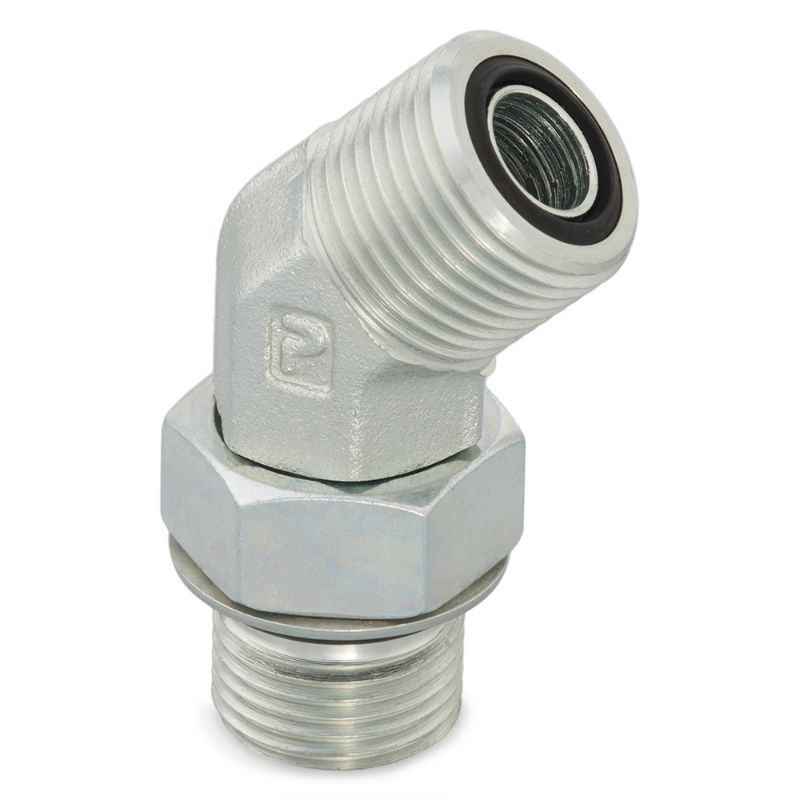

Parker 10-12 V5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 10-12 V5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 10-12 V5OLO-S
Price: 34.49 USD
Availability: LimitedAvailability

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:

14 In Stock

Knoxville, TN	2
Jacksonville, FL	2
Norfolk, VA	2
Fayetteville, NC	2
Mooresville, NC	2
Knoxville, TN	2
Summerville, SC	2

Partner Available:

346 In Stock

Brand Parker

Part No. 10-12 V5OLO-S

$34.49

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Maximum Dynamic Pressure	6000 psi	Body Material	Steel
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J1453
Connection Type	O-ring Face Seal	Connection 1 Type	Male O-Ring Face Seal
Connection 2 Type	Male SAE-ORB	Connection 3 Type	na
Connection 4 Type	na	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	5/8 inch
Connection 2 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Dimensional Weight	0.1370728417266187 lb
Shape	45° Elbow
