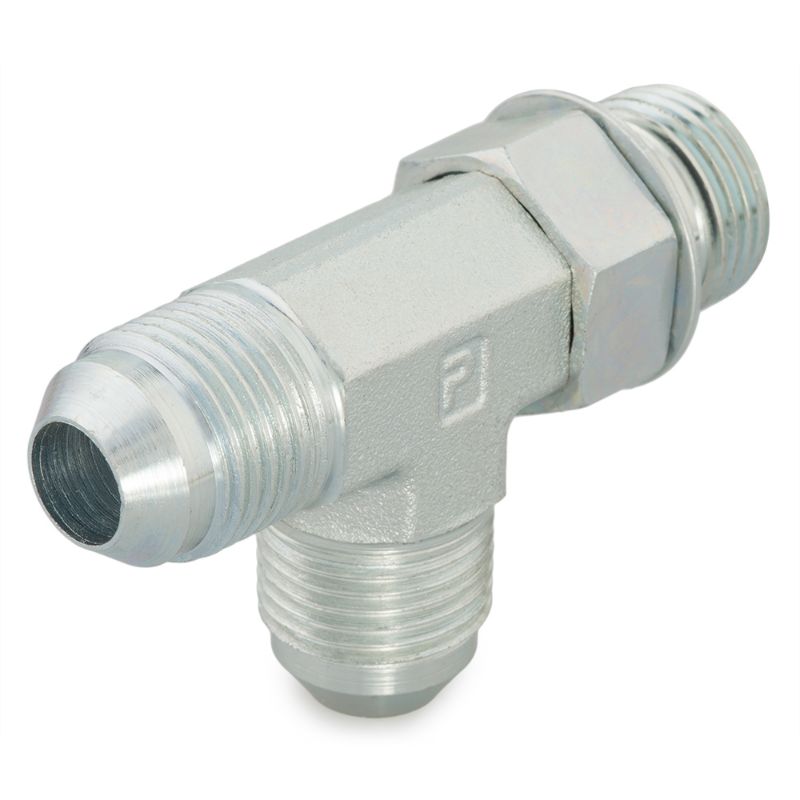

Parker 10-12-10 R5OX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. 10-12-10 R5OX-S

$67.28/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size	1 1/16-12 inch
Shape	Tee	Connection 2 Tube Outside Diameter	na
Body Material	Steel	Specifications Met	SAE J514
Connection 3 Size	Male 37° Flare	Maximum Dynamic Pressure	5000 psi
Connection 4 Size	na	Connection Type	Run Tee
Division	Tube Fittings Division	Connection 2 Size	Male SAE-ORB
Connection 3 Tube Outside Diameter	14, 15, 16 mm	Connection 3 Thread Size	na
Connection 1 Size	Male 37° Flare	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	5/8 inch	O-Ring Material	90 Durometer Nitrile

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
