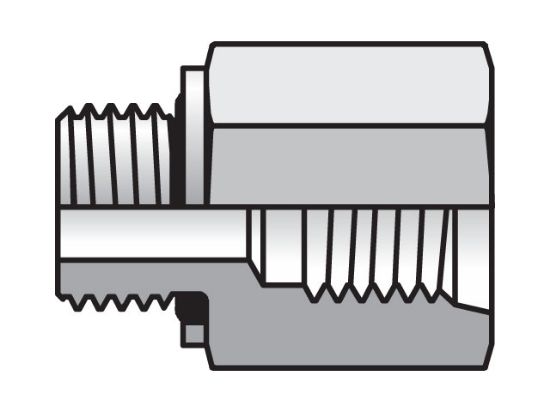

Parker 1/4X1/4F4OHGS V0894 - Pipe & Port Reducer, Expander, Conversion F4OHG5

Conversion Adapter BSPP-ORR / SAE-ORB (for ISO 1179-1 / DIN 3852-2 Port)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1/4X1/4F4OHGS V0894

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Material	Steel	UOM	EA
Pkg Qty/UOM	20 EA	Pkg Qty	20
O-Ring/Seal Material	Fluorocarbon	End 2	1/4-18 NPTF
End 1	1/4-19 BSPP	Parker Group	Fluid Connector
Parker Division	Tube Fitting	Material	Steel
Series	Pipe & Port	Tube Fitting/Adapter Type	Pipe & Port
End 2 Type	NPTF	Configuration Type	Reducer, Expander, Conversion
Inch/Metric	Metric	End 1 Type	BSPP
Configuration Sub-Type	Conversion Adapter BSPP-ORR / SAE-ORB (for ISO 1179-1 / DIN 3852-2 Port)	O-Ring/Seal Material	Fluorocarbon
End 2	1/4-18 NPTF	End 1	1/4-19 BSPP

Product resources

Pipe Fittings and Adapters (PDF)
