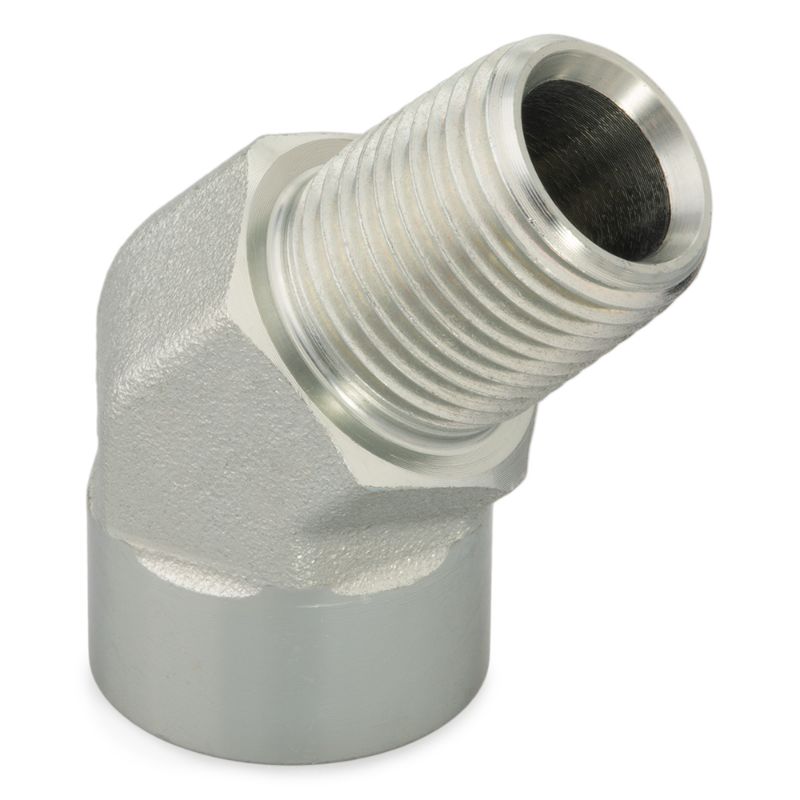

Parker 1 1/4 CD45-S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

AFP Availability:	Quote Required
Partner Available:	50 In Stock

Brand Parker

Part No. 1 1/4 CD45-S

$134.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection 4 Thread Size	na	Fitting Type	Pipe Fitting
Connection 4 Size	na	Maximum Dynamic Pressure	1500 psi
Dimensional Weight	0.31160071942446044 lb	Division	Tube Fittings Division
Length (inch)	na	Body Material	Steel
O-Ring Material	na	Connection 1 Style	Male NPT/NPTF
Connection 3 Style	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 1 Thread Size (inch)	1 1/4-11 1/2
Connection 2 Thread Size (inch)	1 1/4-11 1/2	Connection 3 Thread Size (inch)	na
Shape	45° Elbow	Connection Style	NPT/NPTF to NPT/NPTF
Connection 2 Style	Female NPT/NPTF
