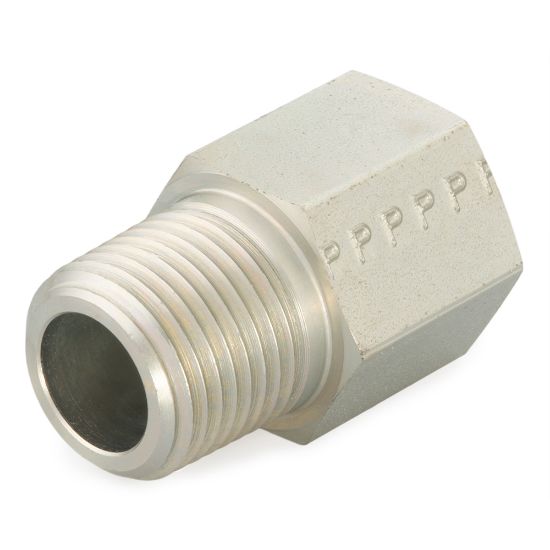

Parker 1 1/4-20 FHG5-S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1 1/4-20 FHG5-S

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Connection 4 Thread Size	na	Maximum Dynamic Pressure	2500 psi
Fitting Type	Port Adapter	Body Material	Steel
Shape	Straight	Length (inch)	na
Body Material	Steel	O-Ring Material	na
Connection 1 Style	Male NPT/NPTF	Connection 3 Style	na
Connection 1 Thread Size (mm)	na	Connection 2 Thread Size (mm)	na
Connection 1 Thread Size (inch)	1 1/4-11 1/2	Connection 3 Thread Size (inch)	na
Connection Style	NPT/NPTF to SAE-ORB	Connection 2 Style	Female SAE-ORB
Connection 2 Thread Size (inch)	1 5/8-12

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
