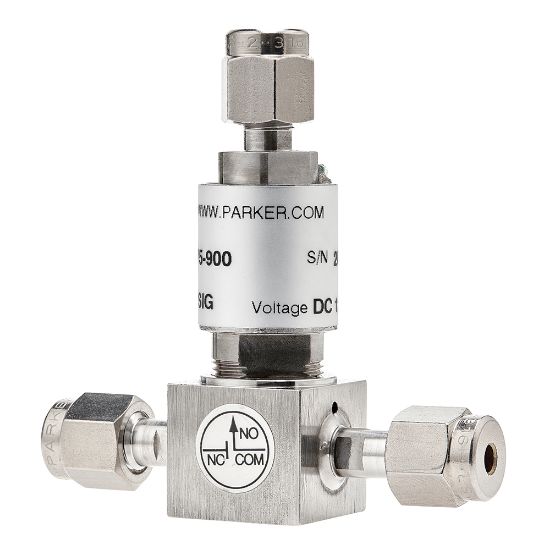

Parker 099-0075-900 - Series 99 – Miniature High Speed and Pressure Dispense Valve

Parker’s series 99 miniature valves handle extreme pressures while maintaining tight leak specifications in wide temperature ranges all in a compact size.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 099-0075-900

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Stainless Steel 316	Maximum Operating Pressure	100 psi
Maximum Operating Temperature	105 °C	Power Consumption	12 W
Configuration	n/a	Input Voltage	12 VDC
Connection Size	1/8 inch	Function	3-Way
Actuation Type	Solenoid	Division	Precision Fluidics Division
Operation Type	Electronic	Control Method	Current or Voltage
For Fluid Type	Liquids	Max Order Quantity	9
Standard Lead Time	20	Out of Stock Lead Time	40
Minimum Operating Temperature	40 °F	Orifice Size	0.060 inch
Mounting Type	Mounting Screw	Electrical Connection	12" Wire Leads
Weight	3.1 oz	Connection Type	A-LOK® Compression
Shipping Weight	0.75	Industry Application	High Pressure Gas Control
Width	19.1 mm	Height	42.1 mm
Length	1.91 inch	Flow Rate	up to 50 SLPM
Leak Rate	1 x 10-8 Atm Cc/sec Helium	Seal Material	Silver Plated Nickel
Maximum Flow Rate	50 SLPM	Voltage (VDC)	12
Porting	1/8" A-Lok	Valve Type	3-Way Universal
