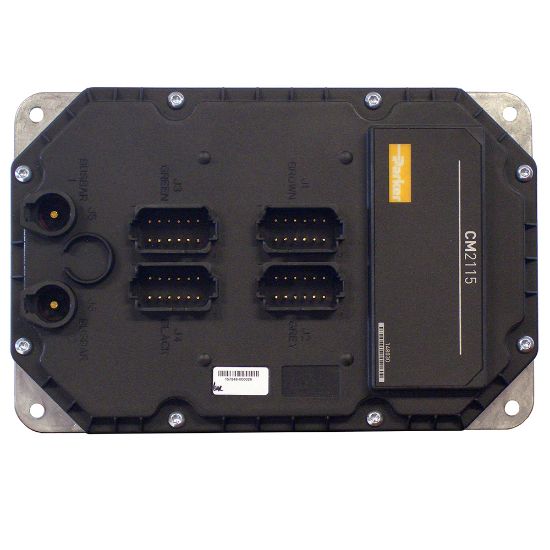

Parker 0935024ECD - Semi-custom Controller Module - CM2115

Parker's CM2115 controller module is a rugged unit that is perfect when used alone or with other controllers in a system. The CM2115 is programmed in C by customers to meet their needs. It communicates using J1939 protocol over a CAN bus connection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 0935024ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Output Current Rating	2.5 A (2x)	Controller Type	Master Controller
Power Supply Voltage	6 to 32 VDC	Maximum Operating Temperature	85 °C
Specifications Met	2004/108/EC	Communication Interface	2x CAN (J1939)
Number of Outputs	15	Housing Material	Plastic
Number of Inputs	21	Industry	Forestry
Minimum Operating Temperature	-40 °C	Software	C and SDK
Ingress Protection Rating	66	Electrical Connection	Deutsch DT04
Division	Electronic Motion and Controls Division	Model Number	CM2115
