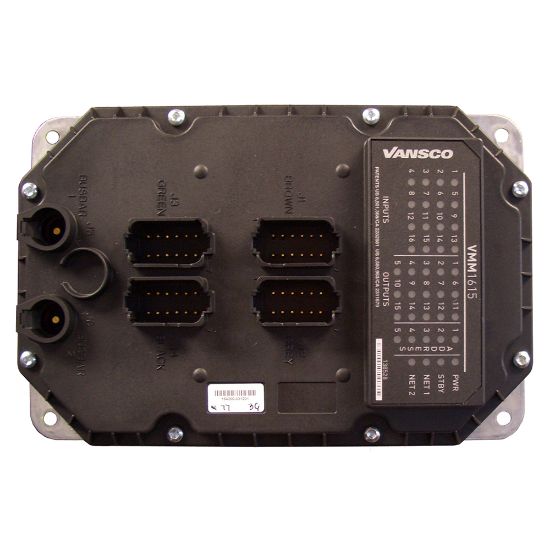

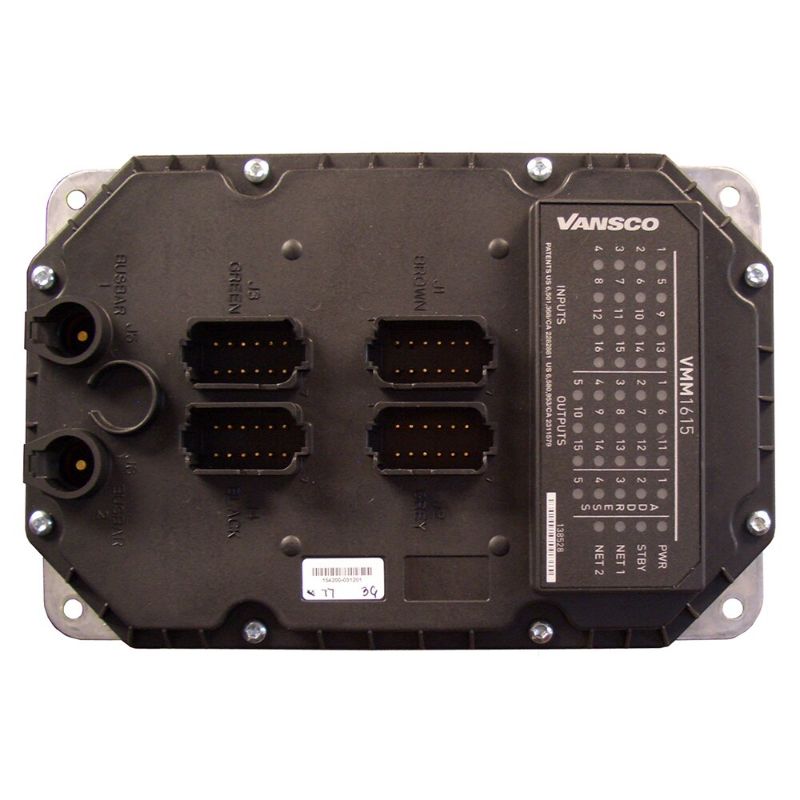

Parker 0935021ECD - Parker Vansco Multiplexing Module - VMM1615

Parker's VMM1615 module is a controller that can be used alone or with other VMM modules in a control system. The VMM1615 has 16 inputs and 15 outputs. The VMM1615 module communicates using J1939 protocol over a CAN bus connection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 0935021ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Power Supply Voltage	24 V	Number of Outputs	15
Industry	Construction	Minimum Operating Temperature	-40 °C
Specifications Met	2004/108/EC	Housing Material	Plastic
Electrical Connection	Deutsch DT	Communication Interface	2x CAN (J1939)
Maximum Operating Temperature	85 °C	Division	Electronic Motion and Controls Division
Output Current Rating	10 A	Software	VMMS Ladder Logic
Controller Type	Master Controller	Ingress Protection Rating	66
Number of Inputs	16	Model Number	VMM1615
