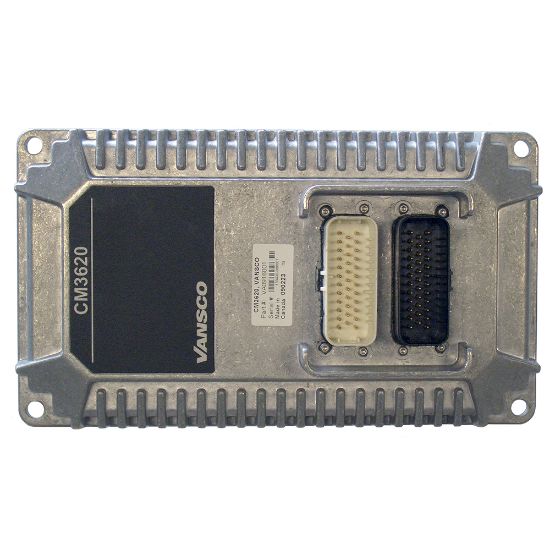

Parker 0916021ECD - Semi-custom Controller Module, CM3620

Parker's CM3620 controller module is a rugged unit that is perfect when used alone or with other controllers in a system. The CM3620 is programmed in C by customers to meet their needs. It communicates using J1939 protocol over a CAN bus connection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 0916021ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Ingress Protection Rating	66	Minimum Operating Temperature	-40
Output Current Rating	2.5	Division	Electronic Motion and Controls Division
Electrical Connection	Ampseal	Industry	Agriculture
Controller Type	Master Controller	Housing Material	Plastic
Specifications Met	2004/108/EC	Number of Inputs	36
Maximum Operating Temperature	85	Number of Outputs	20
Power Supply Voltage	7.5 to 32	Software	C and SDK
Communication Interface	1x CAN (J1939)	Model Number	CM3620

Product resources

Literature and Reference Materials
