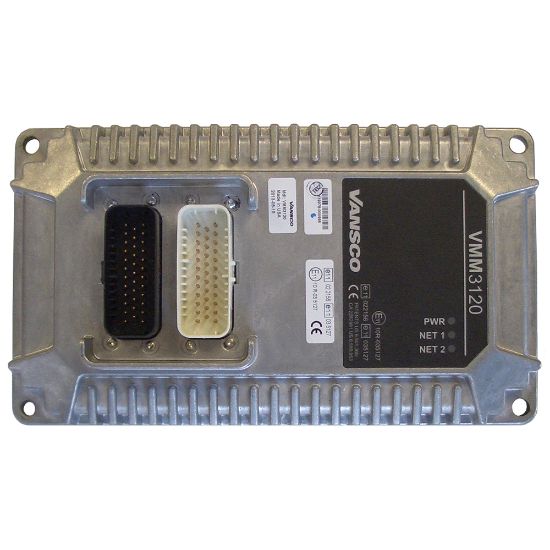

Parker 0916014ECD - Parker Vansco Multiplexing Module - VMM3120

Parker's VMM3120 is a rugged unit that is a perfect controller for mobile equipment when used alone or with other VMM modules in a control system. The VMM3120 communicates using J1939 protocol over a CAN bus connection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 0916014ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Communication Interface	2x CAN (J1939)	Specifications Met	2004/108/EC
Division	Electronic Motion and Controls Division	Power Supply Voltage	7 to 32
Maximum Operating Temperature	85	Number of Outputs	20
Software	VMMS Ladder Logic	Output Current Rating	2.5
Controller Type	Master Controller	Electrical Connection	AMP Superseal
Ingress Protection Rating	66	Number of Inputs	31
Minimum Operating Temperature	-40	Industry	Agriculture
Housing Material	Aluminum	Model Number	VMM3120
