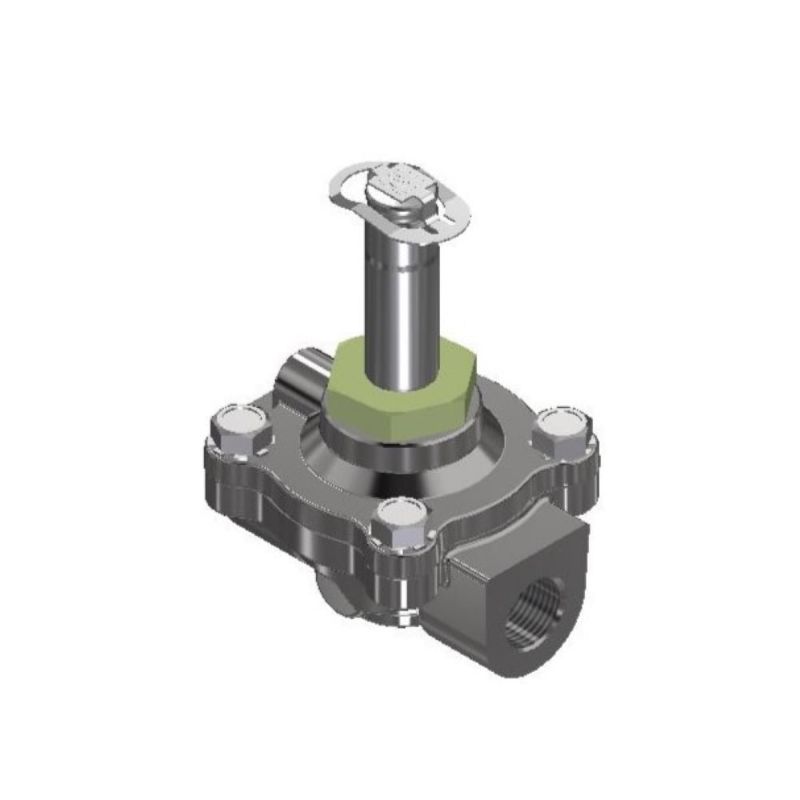

Parker 08F23C6140ACF - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 08F23C6140ACF

$916.56

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Media	General Purpose
Function	Normally Closed	Coil Type	Requires Coil from Chart 4
Port Size	1/2 inch	Port Type	NPT
Installation	IOM 7321	Orifice Size	5/8 inch
Body Material	316 Stainless Steel	Input Voltage	Pressure Vessel Only
Seal Material	NBR	Actuation Type	Direct Lift
Insulation Class	N/A	Power Consumption	11.0 W
Specifications Met	N/A	Division	Fluid Control Division
Valve Configuration	2 Way	Main Flow Coefficient	4.0 Cv
Ingress Protection Rating	N/A	Maximum Fluid Temperature	180.0 °F
Preventive Maintenance Kit	08F23C6140ACFR	Maximum Ambient Temperature	130.0 °F
Maximum Pressure Differential	150.0 psi	Minimum Pressure Differential	0.0 psi
Media	General Purpose	Function	Normally Closed
Coil Type	Requires Coil from Chart 4	Port Size	1/2
Port Type	NPT	Installation	IOM 7321
Orifice Size	5/8	Body Material	316 Stainless Steel
Input Voltage	Pressure Vessel Only	Seal Material	NBR
Actuation Type	Direct Lift	Insulation Class	N/A
Power Consumption	11.0	Specifications Met	N/A
Valve Configuration	2 Way	Main Flow Coefficient	4.0
Ingress Protection Rating	N/A	Maximum Fluid Temperature	180.0
Preventive Maintenance Kit	08F23C6140ACFR	Maximum Ambient Temperature	130.0
Maximum Pressure Differential	150.0	Minimum Pressure Differential	0.0
