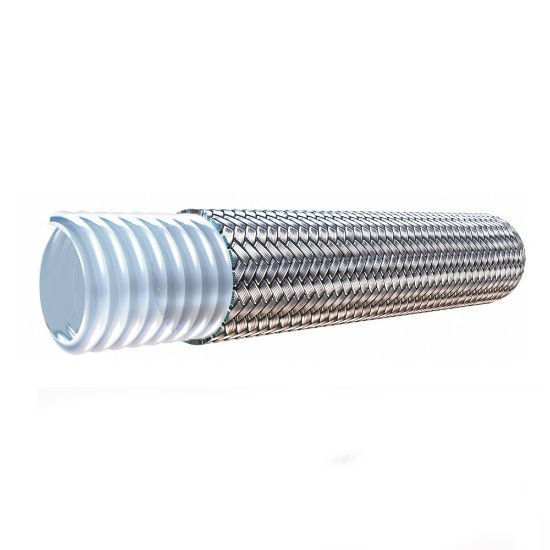

Parker 08-SCWV - OBSOLETE: Heavy Wall Convoluted PTFE Hose with 316 Stainless Steel Braid - SCWV/SCBV

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 08-SCWV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Parflex Division
Application	Fluid Handling	Cover Material	n/a
Compatible Fitting	PAGE Series	Specifications Met	FDA (Core Tube)
Design Factor	4:1	Vacuum Pressure Rating	28
Maximum Operating Temperature	500	Size	-8
Weight	0.22	Inside Diameter	1/2
Outside Diameter	0.760	Minimum Bend Radius	2
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Heavy Wall	Maximum Operating Pressure	1500
Hose Reinforcement Material	Braid of 316 Stainless Steel	Minimum Operating Temperature	-100
Hose I.D. (inch)	1/2	Hose Style	Natural, Stainless Steel Braid
