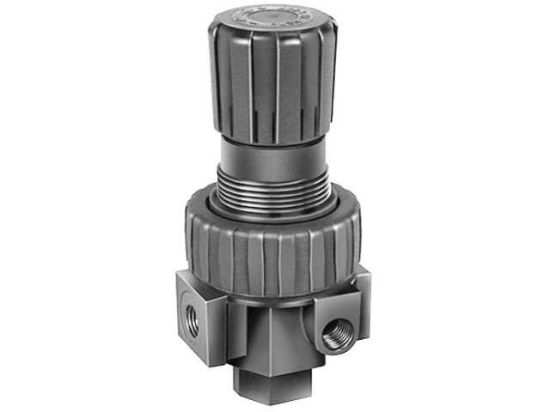

Parker 07R313A - 07R Standard General Industrial Regulator

07R Standard Prep-Air II Regulator

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 07R313A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port	1/2 NPT	Supply Pressure Range	0 to 250 PSIG (0 to 17.2 bar)
Operating Temperature	0°C to 80°C (32°F to 175°F)	Maximum Flow	90 SCFM (42 dm3/s)
Secondary Pressure Range	2 to 125 PSIG (0 to 8.6 bar)	Gauge Type	None
Relieving/Non-relieving	Relieving	Pkg Qty	1
UOM	EA	Parker Group	Automation
Parker Division	Pneumatic	Series	07R Standard
Operating Temperature	0°C to 80°C (32°F to 175°F)	Trade Name	Prep-Air II
Air Preparation Series	General Industrial	Air Preparation Product Type	Regulator
Port	1/2 NPT	Port Inch/BSP	NPT
Supply Pressure Range	0 to 250 PSIG (0 to 17.2 bar)	Flow Range	75-99 SCFM
Secondary Pressure Range	2 to 125 PSIG (0 to 8.6 bar)	Gauge Type	None
Relieving/Non-relieving	Relieving
