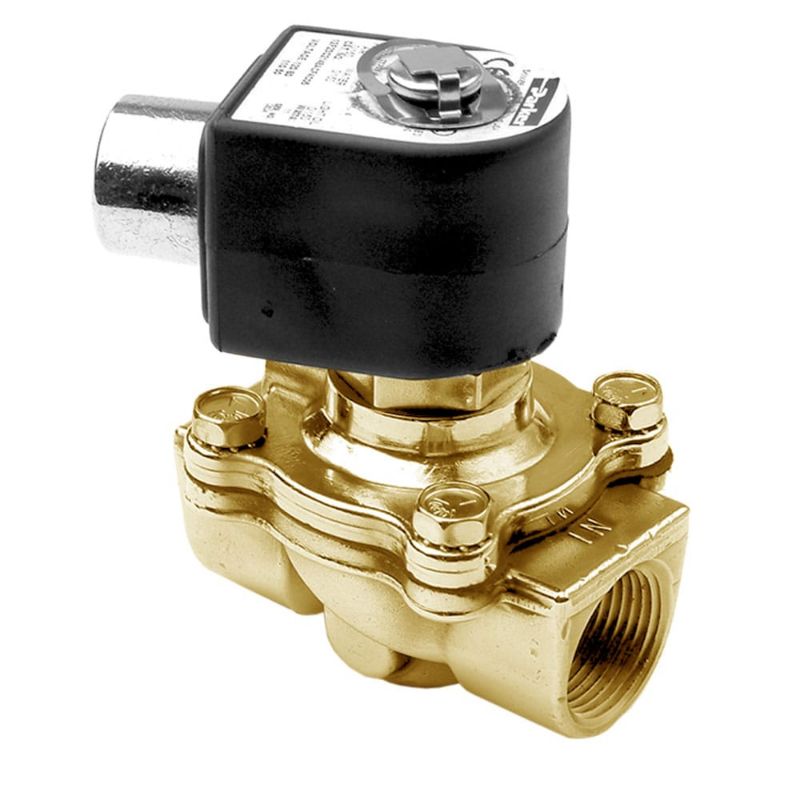

Parker 06F23O2140ACF4C15 - Parker 2-Way Normally Open, 3/8" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 3/8" NPT Solenoid Valves provide operating pressures of 150 PSI and flow factors of 3 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 06F23O2140ACF4C15

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	3/8	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Open (NO)
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Port Type	NPT
Valve Type	2-Way	Body Material	Brass
Input Voltage	220/50 to 240/60	Seal Material	NBR
Actuation Type	Hung Diaphragm	Orifice 1 Size	0.625
Orifice 2 Size	n/a	Product Series	Gold Ring Series
Number of Ports	2	Power Consumption	11 W (AC)
Flow Coefficient 1	3	Flow Coefficient 2	n/a
Coil Specifications Met	Class F	Maximum Fluid Temperature	150
Minimum Fluid Temperature	0	Maximum Pressure Differential	150 psi (AC)
Minimum Pressure Differential	0	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	220/50-240/60
