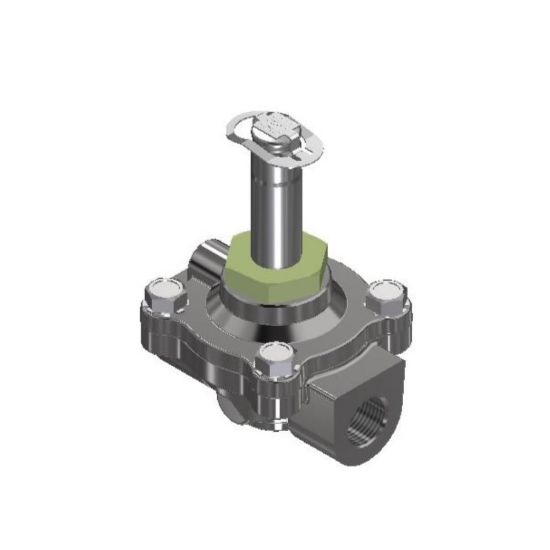

Parker 06F22C6140ADF - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 06F22C6140ADF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	3/8 inch	Division	Fluid Control Division
Media	General Purpose	Function	Normally Closed
Coil Type	Requires Coil from Chart 5	Port Type	NPT
Body Material	316 Stainless Steel	Input Voltage	Pressure Vessel Only
Seal Material	NBR	Actuation Type	Internally Piloted
Power Consumption	16.0 W	Maximum Fluid Temperature	175.0 °F
Maximum Pressure Differential	300.0 psi	Minimum Pressure Differential	5.0 psi
Installation	IOM 7321	Orifice Size	5/8 inch
Insulation Class	N/A	Specifications Met	N/A
Valve Configuration	2 Way	Main Flow Coefficient	3.0 Cv
Ingress Protection Rating	N/A	Preventive Maintenance Kit	06F22C6140ADFR
Maximum Ambient Temperature	130.0 °F	Port Size	3/8
Coil Type	Requires Coil from Chart 5	Body Material	316 Stainless Steel
Seal Material	NBR	Media	General Purpose
Function	Normally Closed	Port Type	NPT
Installation	IOM 7321	Orifice Size	5/8
Input Voltage	Pressure Vessel Only	Actuation Type	Internally Piloted
Insulation Class	N/A	Power Consumption	16.0
Specifications Met	N/A	Valve Configuration	2 Way
Main Flow Coefficient	3.0	Ingress Protection Rating	N/A
Maximum Fluid Temperature	175.0	Preventive Maintenance Kit	06F22C6140ADFR
Maximum Ambient Temperature	130.0	Maximum Pressure Differential	300.0
Minimum Pressure Differential	5.0

Product resources

Literature and Reference Materials

Tube Seal (PDF)
