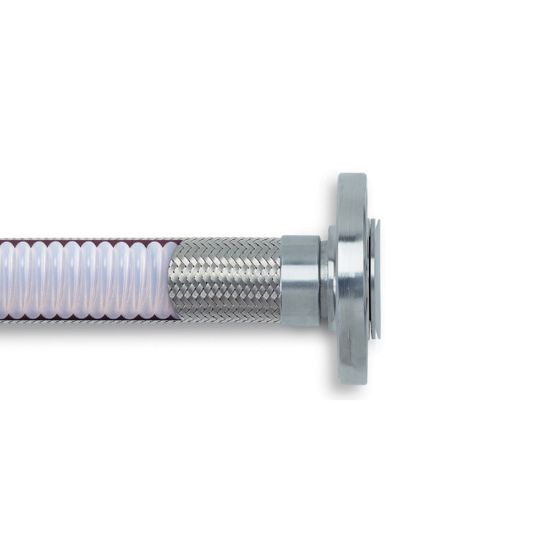

Picture of Parker 06-SCW - Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 06-SCW - Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB

Parker SCW and SCB hoses are seamless, low profile, environmentally safe, self-draining and able to withstand extreme flexing. They are suitable for fluid handling, chemical transfer, paint and semiconductor applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 06-SCW
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionParflex DivisionCover Materialn/a
Compatible FittingPAGE SeriesSpecifications MetUSP Class VI (compliant core tube)
Vacuum Pressure Rating28 Inch-HgHose Inner Tube MaterialPolytetrafluoroethylene (PTFE)
Hose Reinforcement MaterialBraid of 304 Stainless SteelMaximum Operating Temperature500 °F
Minimum Operating Temperature-100 °FDesign Factor4:1
ApplicationSemiconductorSize-6
MediaWaterWeight0.1 lb/ft
Inside Diameter3/8 inchOutside Diameter0.560 inch
Minimum Bend Radius25 mmMaximum Operating Pressure1500 psi
Hose StyleNaturalHose I.D. (inch)3/8
