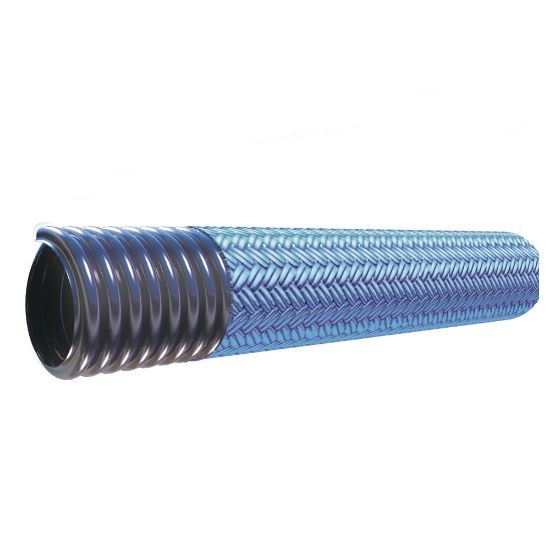

Parker 06-PCB - Convoluted PTFE Hose with Polypropylene Braid - PCW/PCB

Polypropylene braided convoluted hoses are seamless, low profile, environmentally safe, and are 20% lighter than traditional stainless steel braided hoses for increased flexibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 06-PCB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Parflex Division
Product Type	PTFE Hose	Application	Chemical Transfer
Cover Material	n/a	Compatible Fitting	PAGE Series
Specifications Met	USP Class VI (compliant core tube)	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative
Design Factor	4:1	Product Style	Convoluted
Size	-6	Weight	0.06
Inside Diameter	3/8	Outside Diameter	0.640
Minimum Bend Radius	1	Vacuum Pressure Rating	28
Maximum Operating Pressure	350	Hose Reinforcement Material	Braid of Polypropylene
Maximum Operating Temperature	212	Minimum Operating Temperature	0
Hose I.D. (inch)	3/8	Hose Style	Static Dissipative, Polypropylene Braid
