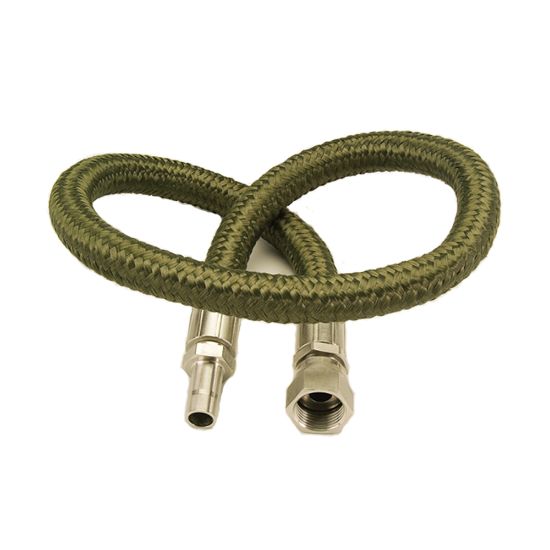

Parker 06-NCW - Seamless Convoluted PTFE with Nomex® Braid - NCW/NCB

PTFE hose with a nomex braid eliminates RFI issues and theyare also less susceptible to cracking from stress or flexing than metal hose assemblies.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 06-NCW

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Parflex Division	Media	Pharmaceutical Fluids (Cosmetics)
Product Type	PTFE Hose	Application	Food & Beverage Processing
Cover Material	n/a	Compatible Fitting	PAGE Series
Specifications Met	USP Class VI (compliant core tube)	Vacuum Pressure Rating	28 Inch-Hg
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)	Hose Reinforcement Material	Green Nomex
Maximum Operating Temperature	204 °C	Minimum Operating Temperature	-73 °C
Cover Color	Natural	Design Factor	4:1
Size	-6	Weight	0.09 kg/m
Inside Diameter	10 mm	Outside Diameter	0.580 inch
Minimum Bend Radius	1-1/2 inch	Maximum Operating Pressure	28 bar
Hose Style	Natural	Hose I.D. (inch)	0.37
