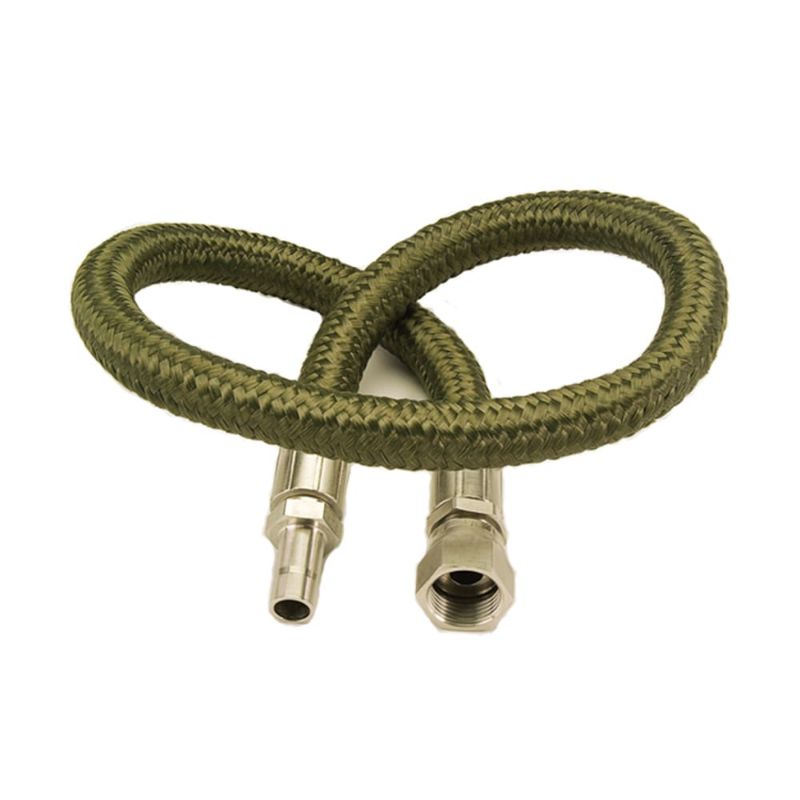

Parker 06-NCB - Seamless Convoluted PTFE with Nomex® Braid - NCW/NCB

PTFE hose with a nomex braid eliminates RFI issues and theyare also less susceptible to cracking from stress or flexing than metal hose assemblies.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 06-NCB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Parflex Division	Product Type	PTFE Hose
Application	Food & Beverage Processing	Product Style	Static Dissipative
Cover Material	n/a	Compatible Fitting	PAGE Series
Specifications Met	USP Class VI (compliant core tube)	Vacuum Pressure Rating	711.2 mm-Hg
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative	Hose Reinforcement Material	Green Nomex
Maximum Operating Temperature	400 °F	Minimum Operating Temperature	-73 °C
Design Factor	4:1	Size	-6
Media	Water	Weight	0.09 kg/m
Inside Diameter	10 mm	Outside Diameter	14.7 mm
Minimum Bend Radius	38 mm	Maximum Operating Pressure	2.8 MPa
Hose Style	Static-Dissipative	Hose I.D. (inch)	0.37
