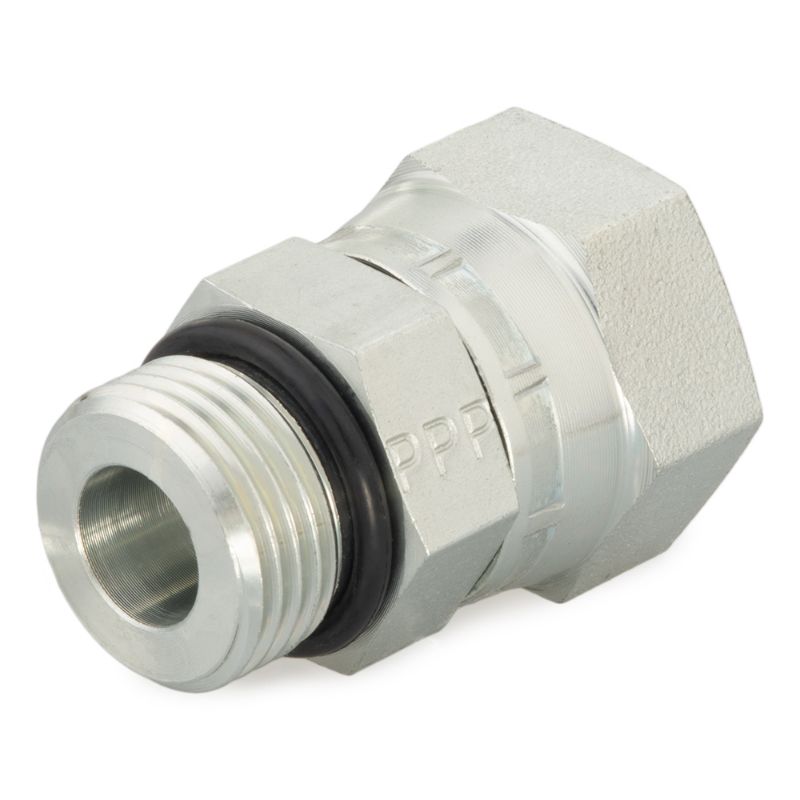

Parker 0507-10-6 - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	39 In Stock

Brand Parker

Part No. 0507-10-6

$76.20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Size	na
Maximum Dynamic Pressure	5000 psi	Connection 4 Thread Size	na
Fitting Type	Pipe Swivel	Division	Tube Fittings Division
Body Material	Steel	Shape	Straight
Connection 1 Thread Size (inch)	7/8-14	Connection 1 Thread Size (mm)	na
Connection 3 Thread Size (inch)	na	Connection Style	SAE-ORB to NPSM Swivel
Connection 2 Thread Size (mm)	na	Connection 2 Style	Female NPSM Swivel
O-Ring Material	90 Durometer Nitrile	Connection 2 Thread Size (inch)	3/8-18
Connection 3 Style	na	Length (inch)	na
Body Material	Steel	Connection 1 Style	Male SAE-ORB

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
