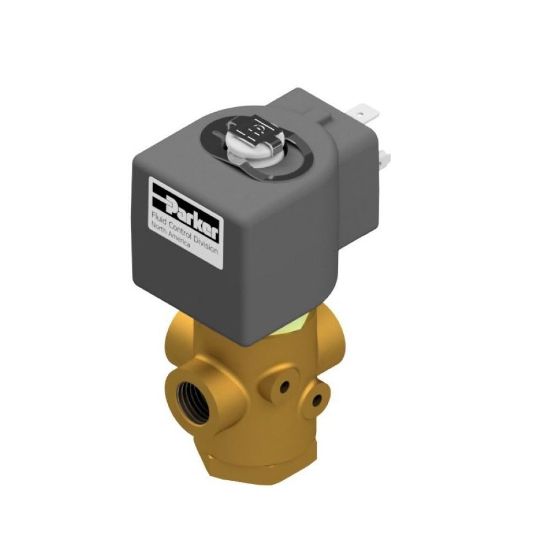

Parker 04F30U2106ADFPH15 - Parker 3-Way Universal, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Universal, 1/4" NPT Solenoid Valves provide operating pressures of 50 psi and flow factors of 0.12 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 04F30U2106ADFPH15

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Exhaust Orifice Size	3/32	Maximum Fluid Temperature	200
Port Size	1/4	Seal Material	NBR
Coil Specifications Met	Class F	Maximum Pressure Differential	50 psi (AC)
Media	General Purpose for Air	Flow Coefficient 2	n/a
Additional Options	n/a	Exhaust Flow Coefficient	0.12
Orifice 2 Size	n/a	Division	Fluid Control Division
Coil Type	DIN Form A, Class F	Minimum Fluid Temperature	0
Main Flow Coefficient	0.12	Valve Type	3-Way
Product Series	Gold Ring Series	Main Orifice Size	3/32
Port Type	NPT	Power Consumption	16 W (AC)
Body Material	Brass	Actuation Type	Direct Acting
Input Voltage	220/50 to 240/60	Minimum Pressure Differential	0
Function	Universal	Number of Ports	3
Coil Type	DIN Form A, Class F	Voltage (V)	220/50-240/60
