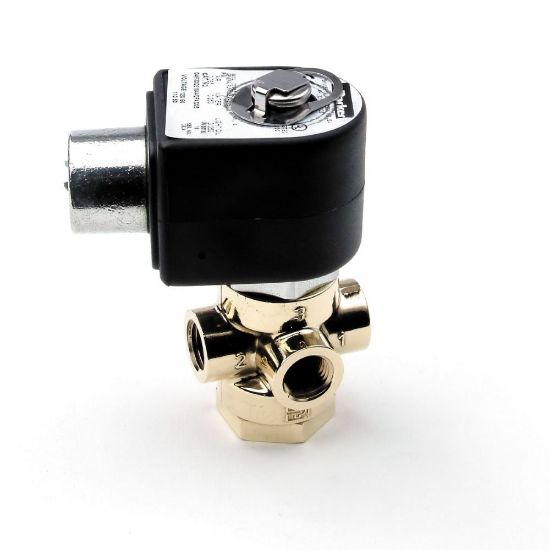

Parker 04F30U2106ADF4C01 - Parker 3-Way Universal, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Universal, 1/4" NPT Solenoid Valves provide operating pressures of 50 psi and flow factors of 0.12 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 04F30U2106ADF4C01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid Control Division	Main Orifice Size	3/32 inch
Minimum Pressure Differential	0 psi	Valve Type	3-Way
Orifice 2 Size	n/a	Media	General Purpose for Air
Additional Options	n/a	Flow Coefficient 2	n/a
Product Series	Gold Ring Series	Number of Ports	3
Power Consumption	16 W (AC)	Maximum Fluid Temperature	200 °F
Port Type	NPT	Port Size	1/4 inch
Main Flow Coefficient	0.12 Cv	Exhaust Flow Coefficient	0.12 Cv
Body Material	Brass	Function	Universal
Minimum Fluid Temperature	0 °F	Exhaust Orifice Size	3/32 inch
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Actuation Type	Direct Acting
Seal Material	NBR	Coil Specifications Met	Class F
Input Voltage	24/60	Maximum Pressure Differential	50 psi (AC)
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Voltage (V)	24/60
