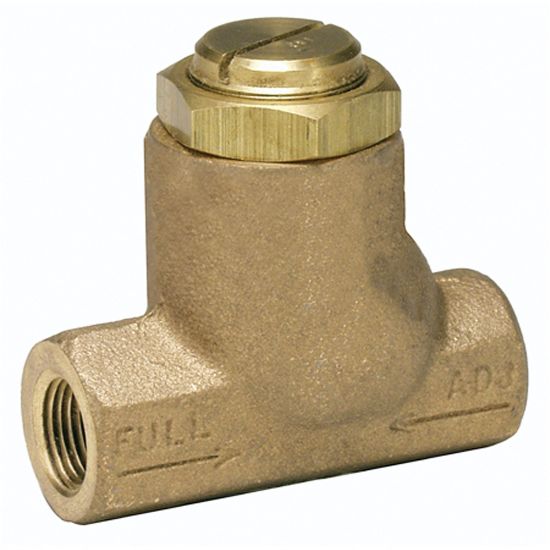

Parker 032500519 - Flow Control Valve - 3250 Series

The 3250 series flow control valves are designed to accurately meter the flow of air with large port sizes up to 1-1/2" NPT and flows of 1800 SCFM. Each valve has a fine screw adjustment, allowing precise settings that are secured by a sturdy lock nut.

Availability:	Quote Required
Partner Available:	14 In Stock

Brand Parker

Part No. 032500519

$241.48

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Pneumatic Division
Media	Air	Options	Extended Temperature Version
Flow Rate	420 (metered)<br>615 (free flow) SCFM	Lubricant	None
Port Size	3/4"	Port Type	NPTF
Product Type	Flow Control	Body Material	Brass or Cast Aluminum
Mounting Type	Inline	Seal Material	Buna N<br>Urethane
Needle Material	Stainless Steel	Flow Coefficient	-
Operating Pressure	0 - 17 bar	Operating Temperature	-40° to +180° °F
Operation Type	Meter Screw, Screw Drive Flat	Port Connection	Female to Female
Port Size (inch)	3/4	Port Type	NPTF
