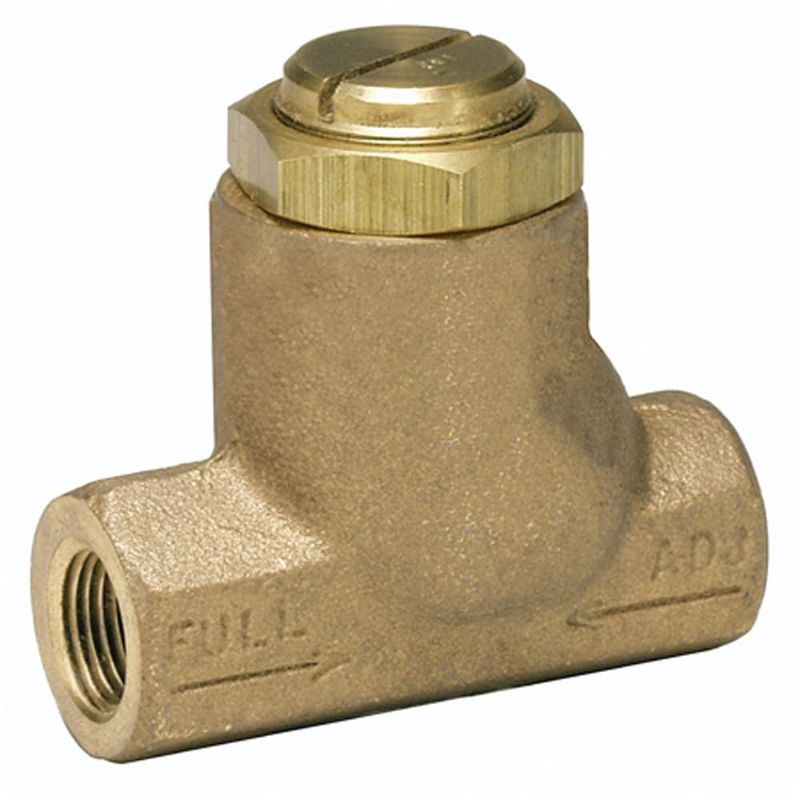

Parker 032500119 - Flow Control Valve - 3250 Series

The 3250 series flow control valves are designed to accurately meter the flow of air with large port sizes up to 1-1/2" NPT and flows of 1800 SCFM. Each valve has a fine screw adjustment, allowing precise settings that are secured by a sturdy lock nut.

AFP Availability:	Quote Required
Partner Available:	7 In Stock

Brand Parker

Part No. 032500119

$100.70/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Air
Options	Extended Temperature Version	Division	Pneumatic Division
Operating Temperature	-40° to +82° °C	Port Size	1/8"
Operation Type	Meter Screw, Screw Drive Flat	Flow Coefficient	-
Body Material	Brass or Cast Aluminum	Mounting Type	Inline
Seal Material	Buna N<br>Urethane	Flow Rate	70 (metered)<br>60 (free flow) SCFM
Needle Material	Stainless Steel	Port Type	NPTF
Operating Pressure	0 - 17 bar	Product Type	Flow Control
Lubricant	None	Port Connection	Female to Female
Port Size (inch)	1/8	Port Type	NPTF
