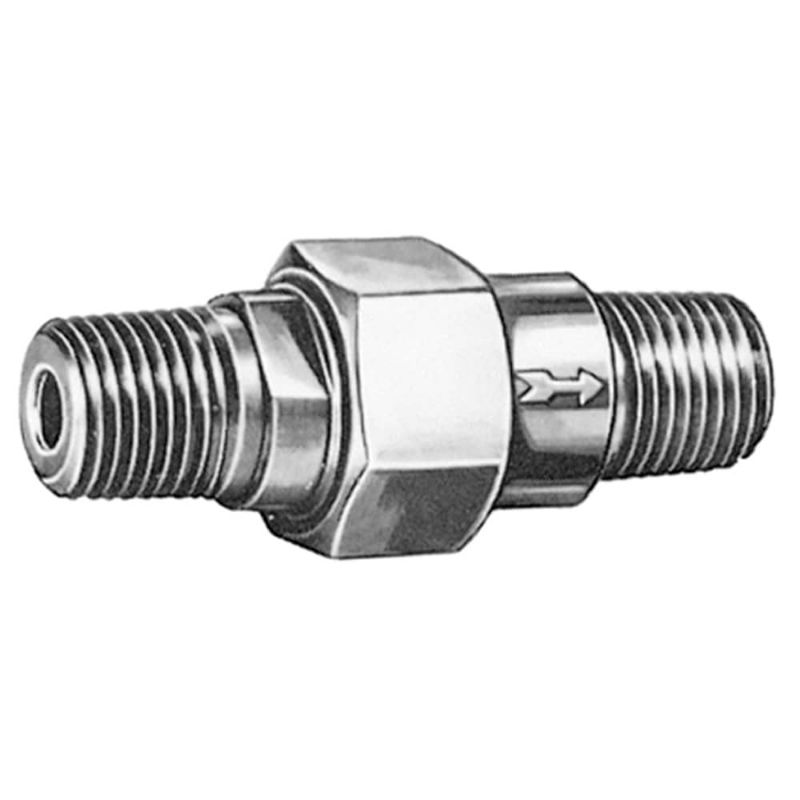

Parker 030470099 - Check Valve - 3047 Series (male to male)

3047 series check valves allow free flow in one direction and provide positive checked flow in the reverse direction. These valves are available with NPTF ports and are recommended for pneumatic service. Available in male to male connection only.

AFP Availability:	Quote Required
Partner Available:	61 In Stock

Brand Parker

Part No. 030470099

$56.95/each

Products specifications

Attribute name	Attribute value
UOM	EA	Lubricant	None
Seal Material	Nitrile	Division	Pneumatic Division
Operating Temperature	0° to +180° °F	Mounting Type	Inline
Body Material	Brass	Options	-
Media	Air	Flow Coefficient	0.56 (free flow) Cv
Port Size	1/4"	Operating Pressure	0- 17 bar
Port Type	NPT	Needle Material	Brass, Stainless Steel
Flow Rate	30 (free flow) SCFM	Product Type	One Way Check Valve
Port Size (inch)	1/4

Product resources

Literature and Reference Materials

0600P Catalog_Accessories (PDF)
