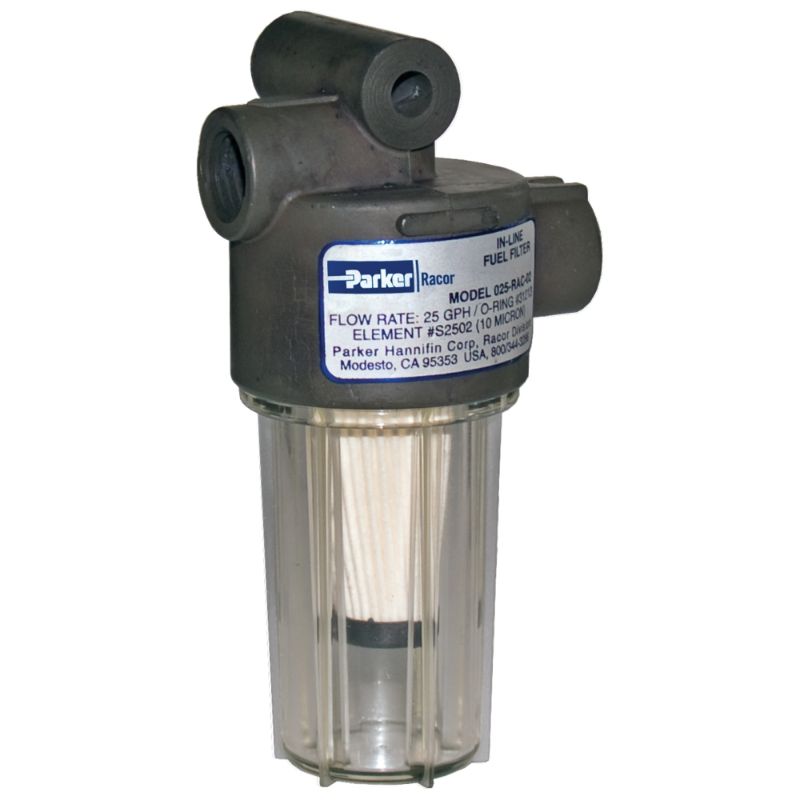

Parker 025-RAC-02 - Fuel Prefilters and Strainers – Racor 025 and PS120 Series

Racor’s line of compact, heavy-duty prefilters/strainers install quickly and help protect engines and extend filtration system life by removing solid contaminants and free water from diesel fuel and gasoline.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 025-RAC-02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Product Series	025 Series	Depth	2.1 inch
Width	5.8 cm	Height	10.9 cm
Related Parts	RK 31390-05-03 Mounting Head	For Fluid Type	Diesel or Gasoline
Compatible Element	S2502	Clean Pressure Drop	0.35 psi
Operating Temperature	-40 to 121 °C	Element Removal Clearance	3" (7.6 cm) inch
Materials of Construction	Die-cast aluminum head, nylon bowl	Maximum Operating Pressure	6.9 bar
Micron Rating	10 micron Aquabloc® Media	Connection	1/4" NPT
Rated Flow (gph)	15 in Diesel, 25 in Gasoline	Rated Flow (lph)	57 in Diesel, 95 in Petrol

Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--025-RAC Marine Gasoline--RSL0382 (PDF)
