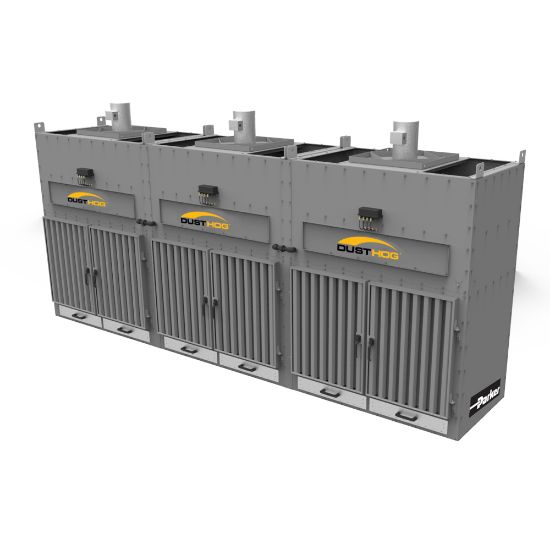

Parker 02-10578-31AL - MCB - Crossflow Dust Collector

The MCB is a completely self-contained system
provides high-filtration efficiency, freedom from source capture obstructions and easy maintenance. The MCB offers versatile configurations.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 02-10578-31AL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	DustHog	Application	Dust, Fume, Smoke
Division	Industrial Gas Filtration and Generation Division	Body Material	Mild Steel
Color	Hog Gray	Paint Type	Powder Coating
Equipment Type	Stationary Medial Collector	Width	36 inch
Weight	1090 lb	Height	98 inch
Depth	42 inch	Current	4.5 amp
Air Consumption	1.82 SCFM per pulse	Motor Control Option	Motor Starter not included
Filter Included	No	Motor Power Output Rating	3.0 HP
Input Supply Voltage	460V/3P/60H	Control Method	External control and motor starter
Model Number	MCB-03, Aluminum Wheel	Air Flow Rate	4000 CFM
Filter Material	Round Media Cartridge	Additional Options	95% or HEPA After Filter
Optional Accessories	Pulse Timer or Digital Pulse Controller
