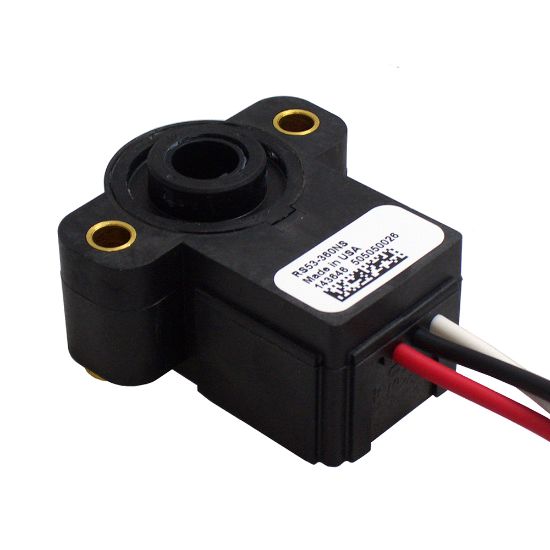

Parker 01825ECD - Rotary Position Sensor - RS

Parker's Rotary Position Sensors are Hall Effect devices with an output voltage dependent upon the angular position of the sensor. They utilize non-contacting technology and are offered in several linear ranges up to 360 degrees of rotation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01825ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	125 °C	Ingress Protection Rating	66
Maximum Travel Angle	360 °	Model Number	RS53
Mounting Option	Hole Spacing 38 mm	Signal Output	0.5 to 4.5 VDC
Housing Material	Glass-filled Nylon	Industry	Agriculture
Operating Current	12 mA max.	Hysteresis	0.5 %
Minimum Operating Temperature	-40 °C	Return Type	None
Maximum Output Error	2 %	Mounting Hole Diameter	5.13 mm
Electrical Connection	DTM04	Sensor Type	Rotation
Power Supply Voltage	5 VDC	Output Current Rating	1 mA
Division	Electronic Motion and Controls Division	Number of Outputs	1
Drive Axis Type	Keyway Driver	Electrical Output Range	360°
