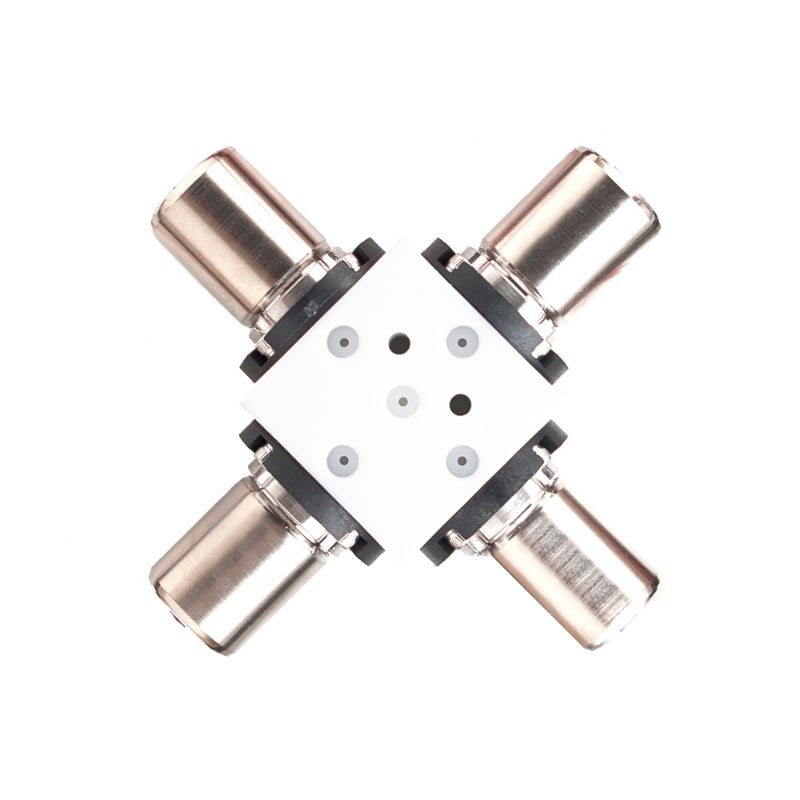

Parker 018-0012-900 - Series 18 – Miniature Multichannel Inert PTFE Manifold Valve

Parker's Series 18 family of PTFE Manifold isolation valves provide an inert wetted path for biocompatibility and aggressive liquids with rapid response times for multiple channels of accurate liquid control.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 018-0012-900

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Leak Rate	Bubble Tight	Height	1.25 inch
Industry Application	Mass Flow Control	Connection Size	1/4"-28 Threaded Port inch
Shipping Weight	2.0	Maximum Flow Rate	550 cm3/min
Maximum Operating Pressure	1.4 bar	Function	2-Way
Body Material	PTFE	Mounting Type	Mounting Screw
Minimum Operating Temperature	4 °C	Flow Rate	up to 550 cm3/min
Standard Lead Time	20	Operation Type	Electronic
For Fluid Type	Liquids	Connection Type	Threaded Port
Max Order Quantity	9	Weight	226 g
Seal Material	PTFE	Control Method	Current or Voltage
Out of Stock Lead Time	40	Maximum Operating Temperature	150 °F
Length	104.4 mm	Electrical Connection	12" Wire Leads
Cycles per Lifetime	10 Million	Orifice Size	1.52 mm
Input Voltage	12 VDC	Power Consumption	2.5 W
Vacuum to Pressure Range	Vacuum to 20 Psig (1.4 bar)	Width	104.4 mm
Configuration	n/a	Division	Precision Fluidics Division
Actuation Type	Solenoid	Voltage (VDC)	12
Channels	2
