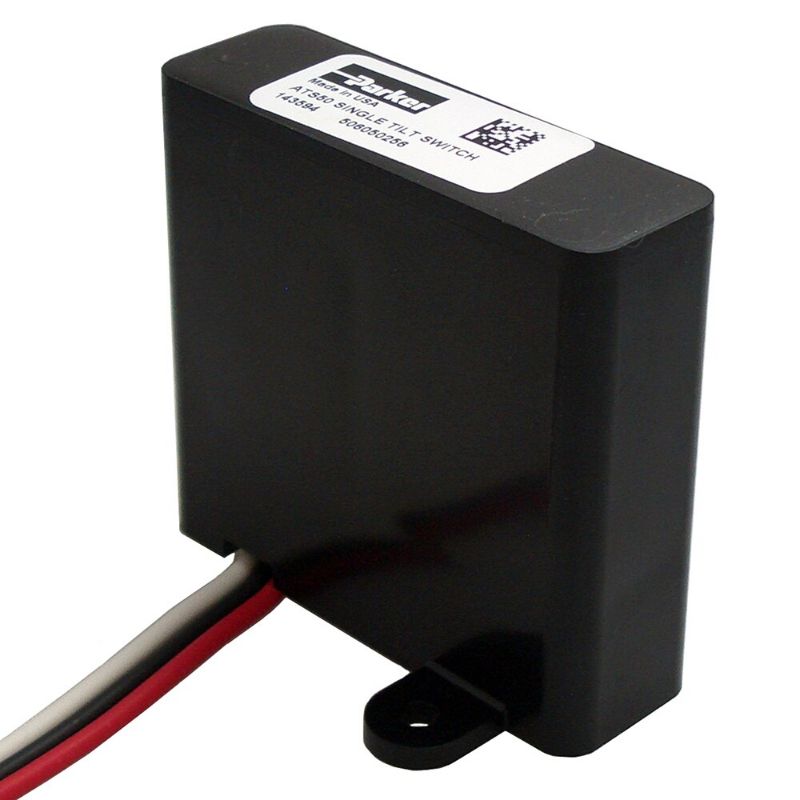

Parker 01759ECD - Angle Tilt Sensor - ATS

Parker's ATS Angle/Tilt Sensors are Hall Effect devices with an output dependent upon the angular movement in one or two horizontal planes. Offered in single or dual axis configurations, they are non-contacting and fit most every level application need.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01759ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Linearity	±0.6%	Maximum Operating Temperature	85
Mounting Option	Flanged	Model Number	ATS50
Power Supply Voltage	5 VDC Regulated	Minimum Operating Temperature	-35
Signal Output	0.5 to 4.5	Division	Electronic Motion and Controls Division
Mounting Hole Diameter	4.3 mm (x2)	Ingress Protection Rating	67
Output Voltage	±10 degrees	Operating Current	12 mA max.
Housing Material	ABS Plastic	Hysteresis	< 0.5
Electrical Connection	DTM04-3P	Sensor Type	Tip/tilt
Output Current Rating	2 mA (max.)	Number of Outputs	1 (single axis)
