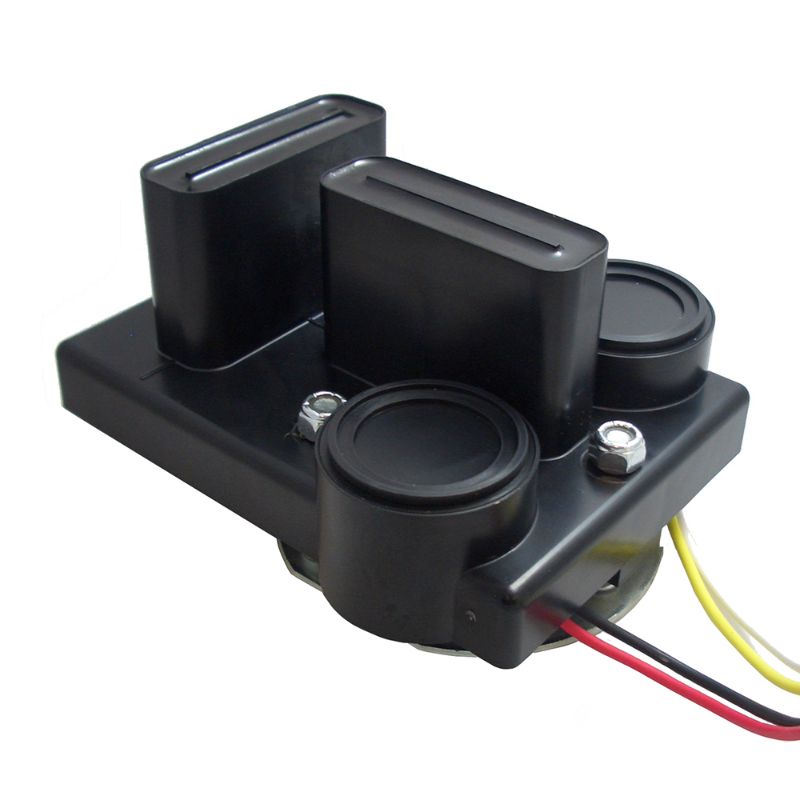

Parker 01716ECD - Angle Tilt Sensor - ATS

Parker's ATS Angle/Tilt Sensors are Hall Effect devices with an output dependent upon the angular movement in one or two horizontal planes. Offered in single or dual axis configurations, they are non-contacting and fit most every level application need.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01716ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Linearity	±0.5%	Ingress Protection Rating	67
Output Current Rating	5 mA (max.)	Output Voltage	±10 degrees
Sensor Type	Tip/tilt	Model Number	ATS90
Mounting Hole Diameter	7.14 mm (x4)	Operating Current	24 mA max.
Mounting Option	Bracket	Signal Output	0.5 to 4.5
Division	Electronic Motion and Controls Division	Minimum Operating Temperature	-35
Electrical Connection	DTM04-4P	Hysteresis	< 1
Maximum Operating Temperature	85	Power Supply Voltage	5 VDC Regulated
Housing Material	ABS Plastic	Number of Outputs	2 (dual axis)
