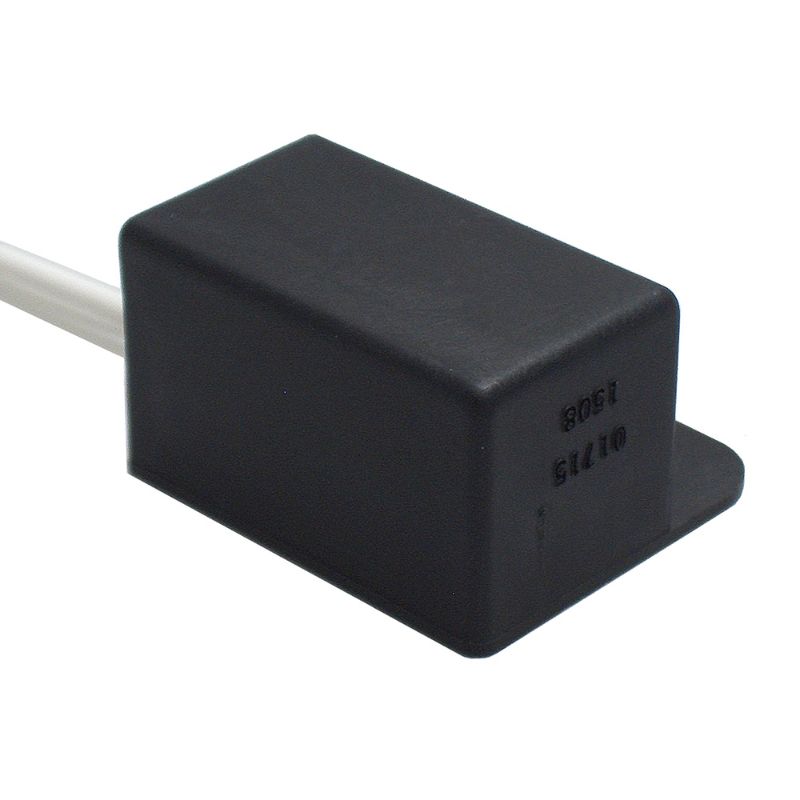

Parker 01715ECD - Tilt Switch - RM50

Parker's RM50 tilt switches detect angular movement in a single axis. They are designed using reed switch technology and no moving external components making them very robust and well suited for applications where mercury (Hg) cannot be used.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01715ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40	Mounting Hole Diameter	6.0 mm (x2)
Switch Option	NO	Maximum Operating Temperature	105
Hysteresis	± 10 ° max	Electrical Connection	DTM
Division	Electronic Motion and Controls Division	Housing Material	Glass-filled Nylon
Contact Rating	20	Maximum Switching Voltage	20
Ingress Protection Rating	67	Maximum Switching Current	1
Sensor Type	Tip/tilt	Model Number	RM50
